CNC

Computerized Numerical Controllers(CNCs)

CNC

Advanced product lines take your machine to the next level.

MITSUBISHI CNC provides the user in the world with the quality product corresponding to the craftsmanship in the world by "processing control technology", "high quality and quantity reliability", "network", and these three concepts.


Overview

Features of the new product
It will introduce three of the features of the latest model M800/M80 Series.

Faster, smoother, easier with higher accuracy!
Minimize the life cycle cost for end users!

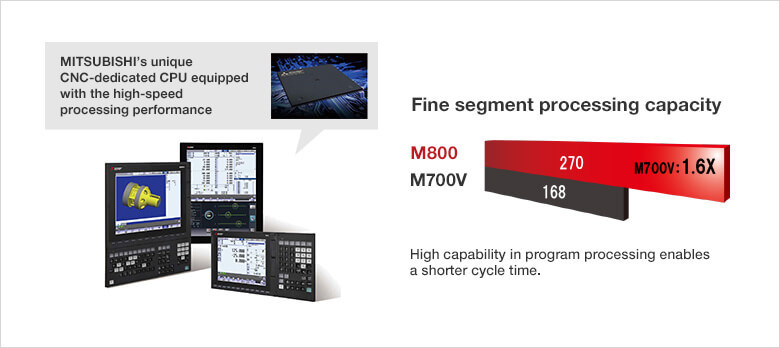

   Basic Performance     MITSUBISHI's unique CNC-dedicated CPU

CNC-dedicated CPU
CNC-dedicated CPU with MITSUBISHI’s own ultra-high-speed processing capacity of the state-of-the-art process technology

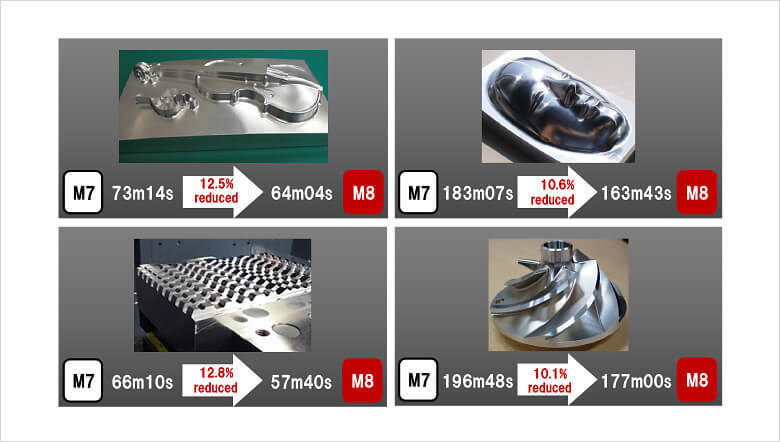

Machining Performance
Achieve a reduction of processing time (our M7 series ratio)

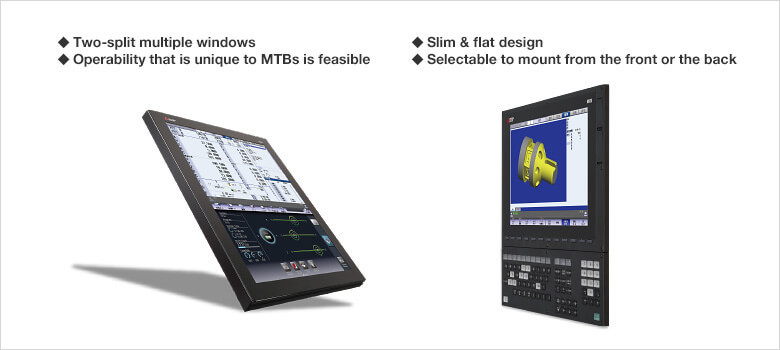

  Advanced Design     Realized the innovative operability with touch panel


M800W Series and M800S/M80 Series won
the Good Design Award in FY 2015


Connectivity


IoT/Response to the Era of Big Data


Equipped with a function that CNC automatically sends 1 machine amount data.

·

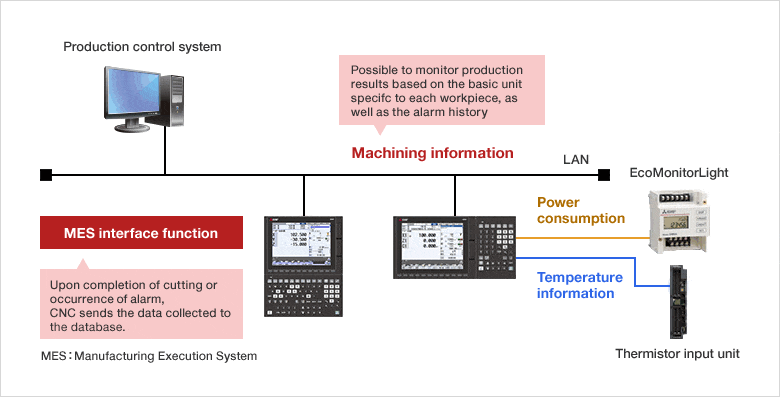

MES interface helps to visualize factory-wide operation

(CNC automatically sends SQL statements to production control system database upon completion of cutting or occurrence of an alarm)

·         When control is combined with the EcoMonitorLight power consumption monitor and the thermal sensor unit, operators can monitor not only CNC status, but also the energy consumed by the machines.





Maintenance

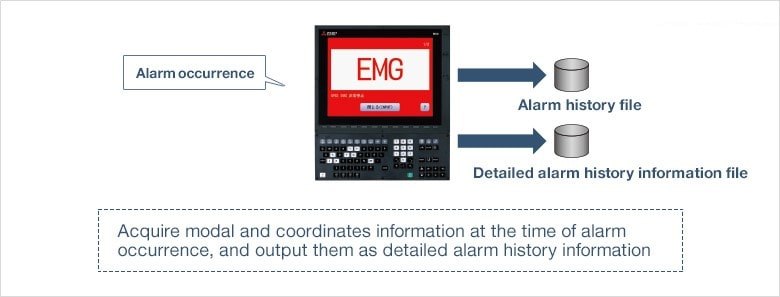

Detailed alarm history information


At the time of alarm occurrence, the detailed information of alarm history is output in a separate file from the existing alarm history.

Understanding detailed information such as modal and coordinates at the time of occurrence enables you to perform early troubleshooting.





Safety

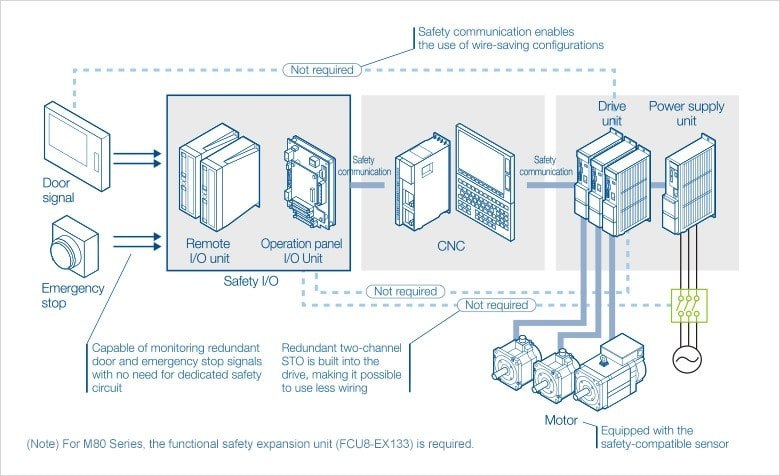

M800/M80 Series provides a range of safety features collectively called the Smart Safety Observation Function.
This function has achieved full conformity with the safety standards that cover the entire system including CNC, drive, I/O, sensors and communication.

Smart safety observation function

·         Safety-related I/O observation

·         Safely-Limited Speed (SLS)

·         Safe Operating Stop (SOS)

·         Safe Brake Control/Safe Brake Test (SBC/SBT)

·         Safe Stop (SS1/SS2)

·         Emergency stop observation

·         Safely-Limited Position (SLP)

·         Safe Speed Monitor (SSM)

·         Safe Cam (SCA)

·         Safe Torque Off (STO)



Functional safety system can be configured easily.



Product Lineup

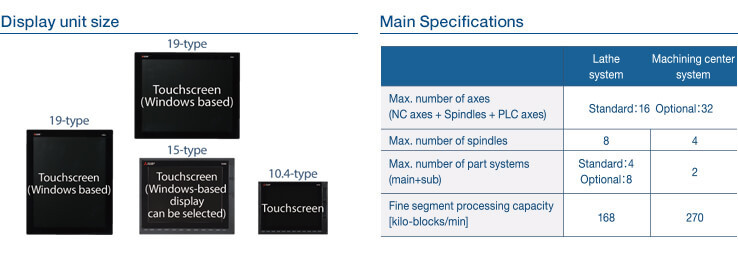

Premium CNC provides expandability and flexibility

·         Separated type, a control unit separated from display

·         Windows-based display is included in the lineup, which provides excellent expandability

·         Four expansion slots are provided as standard specifications, allowing for expansion using option card slot

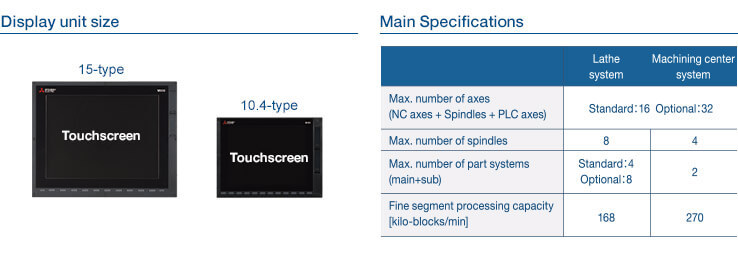

High-grade CNC well suited to high-speed high-accuracy machining and multi-axis multi-part system control

·         Panel-in type, a control unit with integrated display

·         Multi-CPU architecture allows for high performance and high functional graphics

Windows-less display provides easy operability

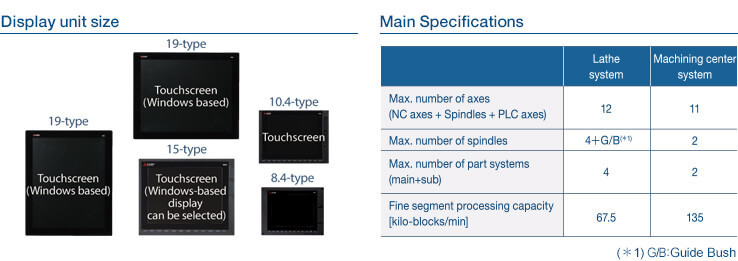

Standard CNC with expandability and flexibility

·         Separated type, a control unit separated from display

·         Windows-based display is included in the lineup, which provides excellent expandability

·         Packaged type for selecting a machine type easily

·         Two expansion slots are provided as standard specifications, allowing for expansion using option cards slot

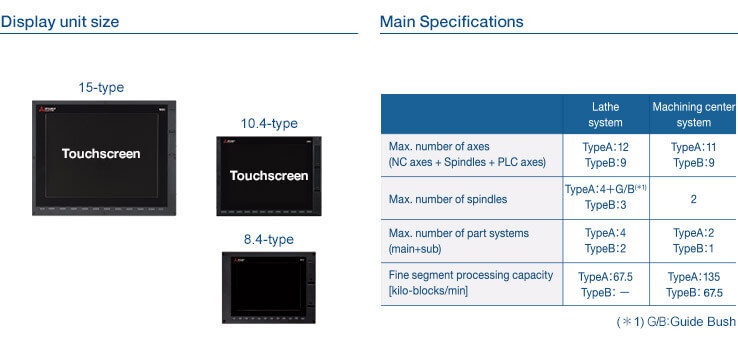

Standard CNC provides high productivity and easy operability

·         Panel-in type, a control unit with integrated display

·         Provided in package (TypeA/TypeB) for easier selection

·         Windows-less display provides easy operability


M700V Series
High-grade MITSUBISHI CNC M700V Series, Equipped with Advanced Complete Nano Control.


M70V Series
Global Standard MITSUBISHI CNC M70V Series, Pursuing High Speed and Accuracy.


E70 Series
Simple CNC E70 Series, Offering Easy Operability and High Cost Performance.


C70 Series
iQ Platform Compatible CNC C70 Series Incorporated with Mitsubishi's State-of-the-Art Technologies.




Specification

M800W




M800S



M80W



M80
