MELSEC-Q series
Programmable Controllers
MELSEC-Q SERIES

Its powerful presence guides the Q Series to the top, where no PLC has ever been before.

With its nano-order speed basic command processes, the next generation MELSEC-Q Series dramatically improves system and machine performance.

As equipment and manufacturing facilities continue to evolve on a daily basis, the series enables high-speed, high-accuracy and large volume data processing and machine control.


Overview

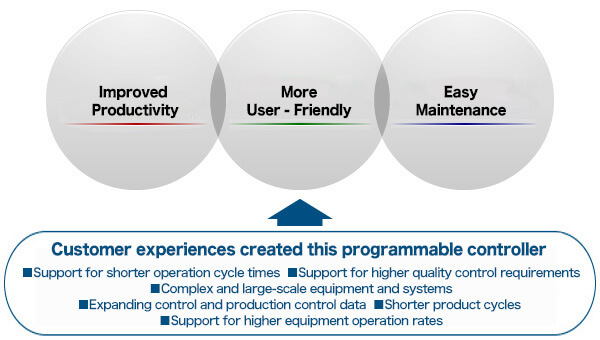

Concept


Current production requirements are calling for an increase in productivity and carrying out production processes even faster due to an increase in production information such as production results and tractability.

The MELSEC-Q Series programmable controller "Universal model QnU" is a leader for these market needs. High-speed basic instruction processing on a micro scale dramatically increases your system and machine performance.

Inheriting the high robust and ease of use design of the Q Series, the MELSEC QnU programmable controller will open up new possibilities in automation solutions.


Allows for detailed power measurement at high speed (250 ms)

Allows for easy specific energy consumption*3 management by matching the "production information" of the CPU module with the "energy information" of the energy measuring module.
Since measured data is automatically collected in a buffer memory at 250 ms, detailed specific energy consumption management is also available.

*3: The specific energy consumption is a numerical value displayed by "dividing energy consumption by production volume," which is one type of index that measures energy productivity. Improving this number leads to improved productivity and energy conservation.

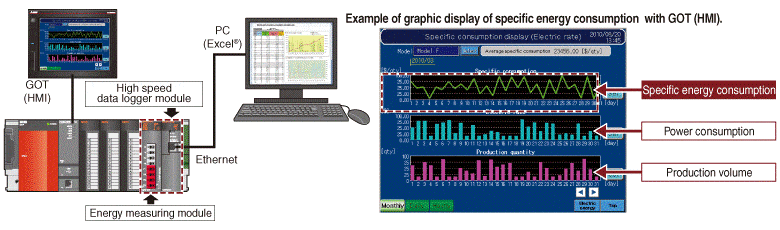

Allows for easy construction of a "visualization" system
Allows for easy graphic display of specific energy consumption with a GOT (HMI) installed on the control panel at the manufacturing site.
Combination with the "high-speed data logger module (QD81DL96)" allows specific energy consumption analysis to be easily performed with a personal computer.

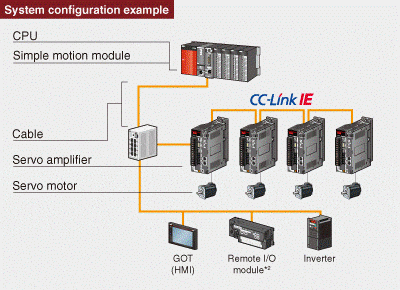

Advanced control but simple use as the positioning module
Speed/torque control and synchronous control are supported in addition to the traditional positioning control. Using the "simple motion module setting tool", operations such as positioning setting, monitoring and debugging can be performed easily. In addition, data synchronized with the motion controller can be collected and displayed in waveform.




CC-Link IE Field Network connection typeQD77GF4QD77GF8QD77GF16
The simple motion module supports the general purpose CC-Link IE Field Network, with its flexible wiring. This module can be used as the CC-Link IE Field's master station*1 while retaining the simple motion module's functions. This realizes flexible networking supporting connection to various devices such as GOT(HMI), remote I/O, inverter, etc.

*1: QD77GF4, QD77GF8, QD77GF16 master station transmission style can use the line type or star type. Up to 104 slave devices can be connected to one network.
*2: The setting and diagnosis function using GX Works2 is disabled.



Product Lineup


CPU

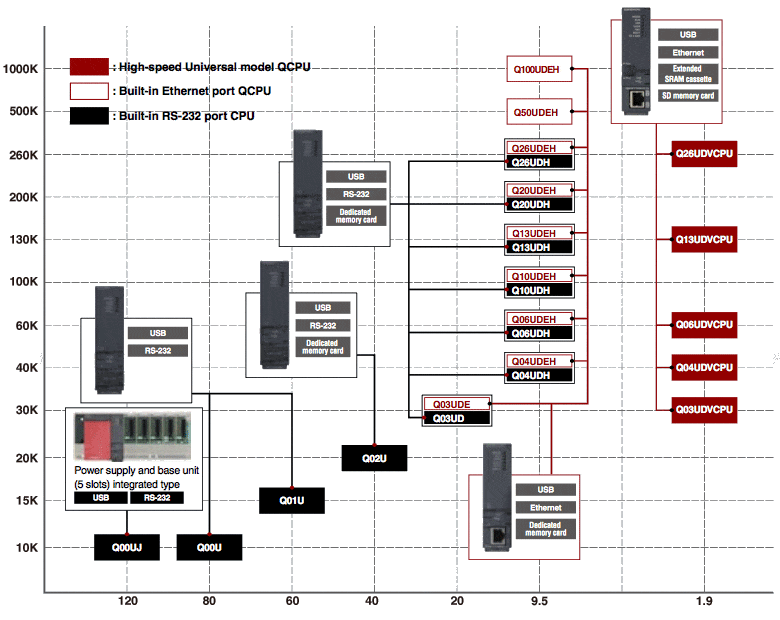

The Q Series offers multiple CPU types and sizes to best fit your specific application needs.




Base Unit
This module is for mounting devices such as power supply modules, CPU modules and input/output modules.
A lineup of base units are available to suit your system needs.




Power supply
Module for electricity supply of CPU, input/output, and other modules.




I/O module
Module for connecting input and output devices. Assorted I/O modules are available to suit your system needs




Analog I/O module
These modules use an analog method for data input/output. They respond to process control needs and are perfect for high-speed, high-accuracy control.




Pulse I/O, counter module
This pulse input, high-speed counter unit supports high-resolution devices and can handle high-speed, high-accuracy control.




Positioning module
Modules for high-speed, high-accuracy positioning control.
A variety of positioning modules are available to cater to different customer needs.


Information module
This module group enables information exchange with the host control system.
The assorted module lineup enhances production efficiency by collecting and controlling various production information.




Control network module
Interface module group for control-system networks. Each FA level is seamlessly integrated with a diverse network.




Energy measuring module
Energy measurement module groups for the measuring and monitoring of various energy information.


Option
We also provide an extensive lineup of peripheral products such as connectors for input/output modules and industrial hubs



Specification

Lineup

Programmable controller CPU (Universal model): 25 models
Process CPU: 4 models
Redundant CPU: 2 models
C Controller: 4 models
Motion CPU: 2 models
Robot controller: 1 model
CNC CPU: 1 model

Control method

Stored program cyclic operation

I/O control mode

Refresh mode

Programming language

Ladder diagram
Structured text (ST)
Instruction list
MELSAP3 (SFC), MELSAP-L
Function block diagram (FBD)
Function block (FB)
C/C++*4

Engineering environment

MELSOFT GX Works2
MELSOFT PX Developer
MELSOFT MT Works2
CW Workbench

Program size (K step)

1000

Number of I/O points [X/Y] (point)

4096

Device/label memory/ standard RAM (K byte)

1792

Data memory/ standard ROM (byte)

16 M

Processing speed

LD instruction (ns)

1.9

MOV instruction (ns)

3.9

Floating point addition (µs)

0.014

Memory interface

Extended SRAM cassette

*3

SD memory card

*3

SRAM card, FLASH card, ATA card

*5

External interface

USB

Ethernet
(1000BASE-T*7/
 100BASE-TX/
 10BASE-T)

*8

RS-232

*9

RS-422/485

Display unit

CC-Link IE connection port

Ethernet
(1000BASE-T/
 100BASE-TX/
 10BASE-T)

Network connectivity (adapter/module)

Ethernet
(1000BASE-T*13/
 100BASE-TX/
 10BASE-T)

CC-Link IE Control

CC-Link IE Field

*15

CC-Link

CC-Link/LT

SSCNET /H

AnyWire

BACnet™

MODBUS®/TCP

MODBUS®

General specifications/conformed standards

Operating ambient temperature

0...55

International safety standards
(ISO 13849-1 PL e,
 IEC 61508 SIL 3)

Standard on corrosive atmosphere
(JIS C60721-3-3/
 IEC 60721-3-3 3C2)

CE: Council Directive of the European Communities

UL: Underwriters Laboratories Listing

LR: Lloyd's Register of Shipping approval

DNV: Norwegian Maritime approval

RINA: Italian Maritime approval

NK: ClassNK approval

ABS: American Bureau of Shipping approval

BV: Bureau Veritas approval

GL: Germanischer Lloyd approval

Key features/functions

Line manufacturing
Distributed control
Large-scale I/O control
Integrated network
Multiple CPU
Process control
High-reliability control
C programming
Data logging
IT gateway
Advanced motion



*1: Supports redundant system when paired with R6RFM
*2: SFC is not supported in redundant mode and by safety CPU
*3: Q□UDVCPU only
*4: When using CW Workbench
*5: Does not support QnUDVCPU and certain models
*6: Does not support L02SCPU(-P)
*7: Supports the user Ethernet port of Q24DHCCPU-V/VG/LS and Q26DHCCPU-LS only
*8: Supports Q□UDE(H)CPU and Q□UDVCPU only
*9: Does not support Q□UDE(H)CPU and Q□UDVCPU
*10: Supports L02SCPU(-P) only
*11: Supports FX3G only
*12: R□ENCPU only
*13: Supports the MELSEC iQ-R Series only.
*14: Supported by expansion board
*15: Does not support Q□(P)(H)CPU and Q□PRHCPU
*16: Supports SSCNET

*17: Only supported when used together with extended temperature range main/extension base units
*18: R□SFCPU-SET only.
*19: For protection against aggressive atmosphere and gases, products with a conformal coating (JIS C 60721-3-3/IEC 60721-3-3 Class 3C2) are available on request
*20: Operating ambient temperature from -20
is supported by products produced from June 2016 (serial number "166" or later). For details, on supported products, please refer to the relevant product manual.



Selection Tool

Product Comparison

Series

Modular type

Modular type

Baseless type


MELSEC iQ-R


MELSEC-Q


MELSEC-L

PAC (Programmable automation controller)

Programmable controller CPU

Programmable controller CPU

Lineup

Programmable controller CPU: 8 models
CC-Link IE embedded CPU: 5 models
Safety CPU: 4 models
Process CPU*1: 8 models
C Controller: 1 model
Motion CPU: 3 models
Robot controller: 1 model
CNC CPU: 1 model

Programmable controller CPU (Universal model): 25 models
Process CPU: 4 models
Redundant CPU: 2 models
C Controller: 4 models
Motion CPU: 2 models
Robot controller: 1 model
CNC CPU: 1 model

Programmable controller CPU
Sink type: 5 models
Source type: 5 models

Control method

Stored program cyclic operation

Stored program cyclic operation

Stored program cyclic operation

I/O control mode

Refresh mode

Refresh mode

Refresh mode

Programming language

Ladder diagram
Structured text (ST)
Sequential function chart (SFC)*2
Function block diagram (FBD/LD)
Function block (FB)
C/C++*4

Ladder diagram
Structured text (ST)
Instruction list
MELSAP3 (SFC), MELSAP-L
Function block diagram (FBD)
Function block (FB)
C/C++*4

Ladder diagram
Structured text (ST)
Instruction list
MELSAP3 (SFC), MELSAP-L
Function block (FB)

Engineering environment

MELSOFT GX Works3
MELSOFT MT Works2
CW Workbench

MELSOFT GX Works2
MELSOFT PX Developer
MELSOFT MT Works2
CW Workbench

MELSOFT GX Works2

Program size (K step)

1200

1000

260

Number of I/O points [X/Y] (point)

4096

4096

4096

Device/label memory/ standard RAM (K byte)

3380

1792

768

Data memory/ standard ROM (byte)

40 M

16 M

2 M

Processing speed

LD instruction (ns)

0.98

1.9

9.5

MOV instruction (ns)

1.96

3.9

19

Floating point addition (µs)

0.01

0.014

0.057

Memory interface

Extended SRAM cassette

*3

SD memory card

*3

*6

SRAM card, FLASH card, ATA card

*5

External interface

USB

Ethernet
(1000BASE-T*7/
 100BASE-TX/
 10BASE-T)

*8

*6

RS-232

*9

*10

RS-422/485

Display unit

CC-Link IE connection port

Ethernet
(1000BASE-T/
 100BASE-TX/
 10BASE-T)

*12

Network connectivity (adapter/module)

Ethernet
(1000BASE-T*13/
 100BASE-TX/
 10BASE-T)

CC-Link IE Control

CC-Link IE Field

*15

CC-Link

CC-Link/LT

SSCNET /H

AnyWire

BACnet™

MODBUS®/TCP

MODBUS®

General specifications/conformed standards

Operating ambient temperature

0...55 (60*17)

0...55

0...55

International safety standards
(ISO 13849-1 PL e,
 IEC 61508 SIL 3)

*18

Standard on corrosive atmosphere
(JIS C60721-3-3/
 IEC 60721-3-3 3C2)

*19

CE: Council Directive of the European Communities

UL: Underwriters Laboratories Listing

LR: Lloyd's Register of Shipping approval

DNV: Norwegian Maritime approval

RINA: Italian Maritime approval

NK: ClassNK approval

ABS: American Bureau of Shipping approval

BV: Bureau Veritas approval

GL: Germanischer Lloyd approval

Key features/functions

Line manufacturing
Distributed control
Small-scale I/O control
Large-scale I/O control
Security
Inter-modular sync
Built-in database
Integrated network
Multiple CPU
Process control
High-reliability control
C programming
Datalogging
IT gateway
Advanced motion
Safety
Real-time monitor

Line manufacturing
Distributed control
Large-scale I/O control
Integrated network
Multiple CPU
Process control
High-reliability control
C programming
Data logging
IT gateway
Advanced motion

Machine control
Distributed control
Small-scale I/O control
Large-scale I/O control
Space/cost saving
Integrated network
Extensive built-in functions
Data logging
Motion control
Real-time monitor

*1: Supports redundant system when paired with R6RFM

*2: SFC is not supported in redundant mode and by safety CPU

*3: Q□UDVCPU only

*4: When using CW Workbench

*5: Does not support QnUDVCPU and certain models

*6: Does not support L02SCPU(-P)

*7: Supports the user Ethernet port of Q24DHCCPU-V/VG/LS and Q26DHCCPU-LS only

*8: Supports Q□UDE(H)CPU and Q□UDVCPU only

*9: Does not support Q□UDE(H)CPU and Q□UDVCPU

*10: Supports L02SCPU(-P) only

*11: Supports FX3G only

*12: R□ENCPU only

*13: Supports the MELSEC iQ-R Series only.

*14: Supported by expansion board

*15: Does not support Q□(P)(H)CPU and Q□PRHCPU

*16: Supports SSCNET Ⅲ

*17: Only supported when used together with extended temperature range main/extension base units

*18: R□SFCPU-SET only.

*19: For protection against aggressive atmosphere and gases, products with a conformal coating (JIS C 60721-3-3/IEC 60721-3-3 Class 3C2) are available on request

*20: Operating ambient temperature from -20℃ is supported by products produced from June 2016 (serial number "166" or later). For details, on supported products, please refer to the relevant product manual.
