NC Monitor2
Main functions
Main functions
- Adopts the same screen structure
The monitoring display is constructed to mirror the CNC display unit is.
Note that the screen structure of 10.4-type display is applied when 15-type or 19-type display is connected.
Possible to select a monitoring screen that is not synchronized with display of the CNC in operation. - Limit display/setting operation of CNCs
By setting parameters in a CNC, the availability of displaying and setting using this software can be restricted. - Connectable CNCs are automatically listed

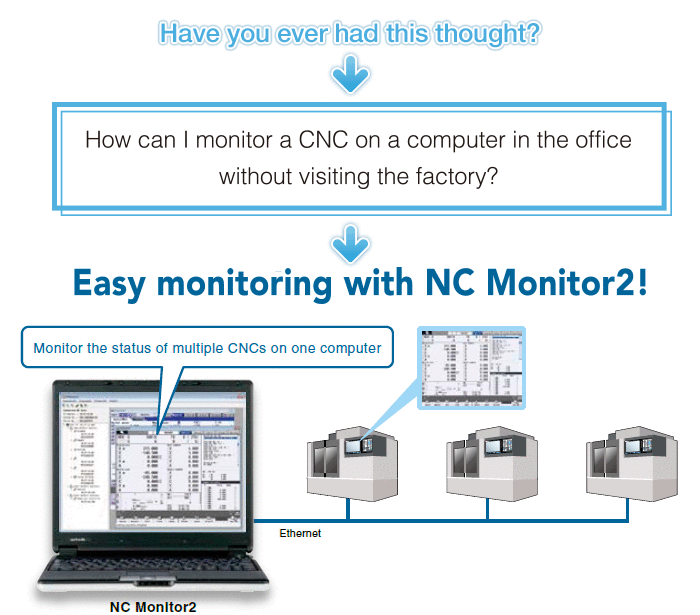

Connectable CNCs in a network group are automatically displayed in a list, and the CNCs can be connected by selecting them.
Main specifications
Main specifications of NC Monitor2
OS supported | Windows® 7 SP1 or later/Windows® 8.1/Windows® 10 *Supports 32-and 64-bit OS (WOW64 available for 64-bit) |
---|---|
Languages | English/Japanese |
CNC connections | Supported CNCs : M800/M80/M700V/M70V/E70/C80 SeriOS supportedes Connection configuration : Ethernet Connectable CNCs : 10 (max.) |
Precaution | Please use the Remote Monitor Tool for the C70. |
