MELSEC-WS

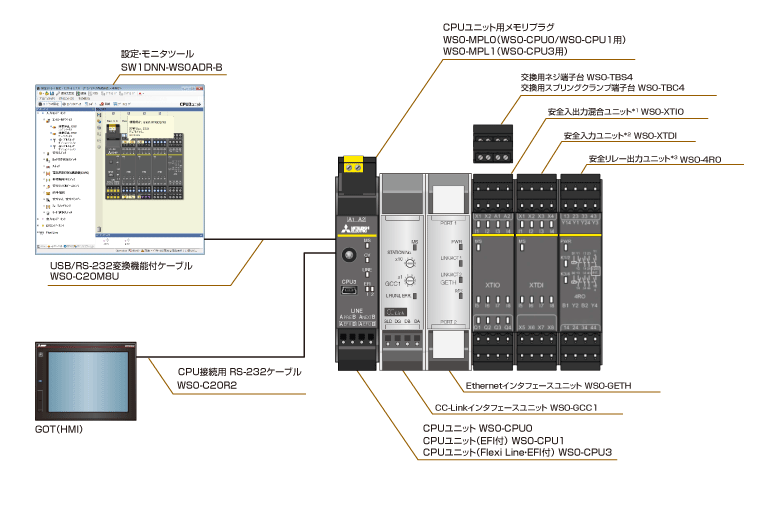

Basic configuration
* 1. Number of input points: 8 (single wiring), Number of output points: 4 (single wiring)
* 2. Number of input points: 8 (single wiring)
* 3. Safety relay output: 4 points
* 2. Number of input points: 8 (single wiring)
* 3. Safety relay output: 4 points
Product Line
| Product name | Model name | specification |
|---|---|---|
| CPU | WS0-CPU000200 (WS0-CPU0) | — |
| WS0-CPU130202 (WS0-CPU1) | Flexi Link compatible with EFI | |
| WS0-CPU320202 (WS0-CPU3) | Flexi Link with EFI Flexi Line compatible | |
| Memory plug for CPU | WS0-MPL000201 (WS0-MPL0) | For WS0-CPU0 / WS0-CPU1 |
| WS0-MPL100201 (WS0-MPL1) | For WS0-CPU3 | |
| Safety input | WS0-XTDI80202 (WS0-XTDI) | Safety input: 8 points (single input) |
| Safe input / output mixing | WS0-XTIO84202 (WS0-XTIO) |
Safety input: 8 points (single input) Safety output: 4 points (single output) |
| Safety relay output | WS0-4RO4002 (WS0-4RO) | Safety outputs: 4 safety relay outputs |
| CC-Link interface | WS0-GCC100202 (WS0-GCC1) | CC-Link communication (general communication) remote device station CC-Link version 1.10 |
| Ethernet interface | WS0-GETH00200 (WS0-GETH) | For Ethernet TCP / IP connection (general communication) |
| Cable with USB / RS-232 conversion function | WS0-C20M8U | For connection between PC and CPU unit (2m) |
| RS-232 cable for CPU connection | WS0-C20R2 | For connection between PC and CPU unit (2m) |
| USB / RS-232 conversion cable | WS0-UC-232A | For connection between PC and WS0-C20R2 |
| Replacement screw terminal block | WS0-TBS4 | 4 pieces |
| Replacement spring clamp terminal block | WS0-TBC4 | 4 pieces |
The MELSEC-WS series is jointly developed and manufactured with the German safety equipment maker "SICK".
SICK is a safety solution supplier that develops and manufactures various safety devices, industrial sensors, and automatic recognition systems.
* This product is developed and manufactured jointly with a manufacturer that we have partnered with, and bears the names and brands of both companies.
Since the general specifications and warranty are different, please contact each branch or refer to the manual of each product.
