MELSEC iQ-R

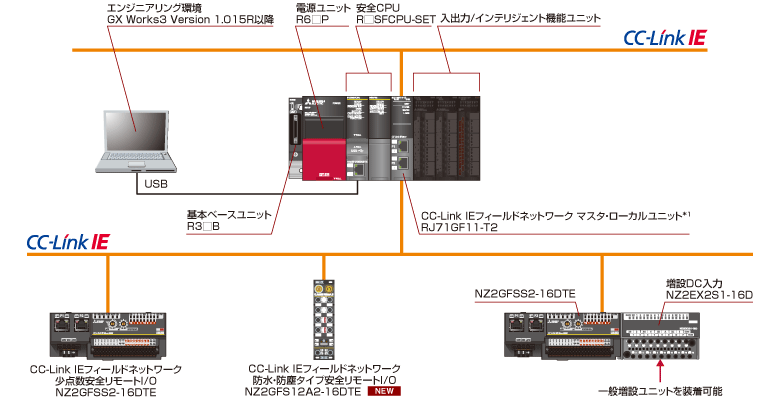

Basic configuration
* 1. Firmware version “07” or later
Product Line
Product name | Model name | specification |
---|---|---|
Safety CPU * 2 | R08SFCPU-SET |
Program capacity: 80K steps (for safety program: 40K) |
R16SFCPU-SET |
Program capacity: 160K steps (for safety program: 40K) |
|
R32SFCPU-SET |
Program capacity: 320K steps (for safety program: 40K) |
|
R120SFCPU-SET |
Program capacity: 1200K steps (for safety program: 40K) |
|
Safe remote I / O | NZ2GFSS2-8D | Single wiring: 8 points / double wiring: 4 points, 24 VDC, response time: 0.4 ms, negative common, spring clamp terminal block, 2-wire |
NZ2GFSS2-32D | Single wiring: 32 points / double wiring: 16 points, 24 VDC, response time: 0.4 ms, negative common, spring clamp terminal block, 2-wire | |
NZ2GFSS2-8TE | Single wiring: 8 points / double wiring: 4 points, 24 VDC, response time: 0.4 ms, source + source type, spring clamp terminal block, 2-wire | |
NZ2GFSS2-16DTE | Single wiring (input / output): 8 points / double wiring (input / output): 4 points, 24 V DC, response time: 0.4 ms, negative common, source + source type, spring clamp terminal block, 2-wire | |
NZ2EXSS2-8TE * 3 | Single wiring: 8 points / Dual wiring: 4 points, 24 V DC, source + source type, spring clamp terminal block, 2-wire | |
NZ2GFS12A2-14DT | DC input: 12 points (single wiring), 6 points (dual wiring), 24 VDC, negative common type Transistor output: Single wiring not possible, 2 points (dual wiring), 24 VDC, source + sink type waterproof Connector, 2-wire | |
NZ2GFS12A2-16DTE | DC input: 12 points (single wiring), 6 points (dual wiring), 24 VDC, minus common type transistor output: 4 points (single wiring), 2 points (dual wiring), 24 VDC, source + Source type waterproof connector, 2-wire |
* 2 . R □ SFCPU-SET is a set product of R □ SFCPU and R6SFM.
* 3 . Only NZ2GFSS2-32D can be connected.
