Solutions
Safety solutions
Safety relay unit
Basic configuration

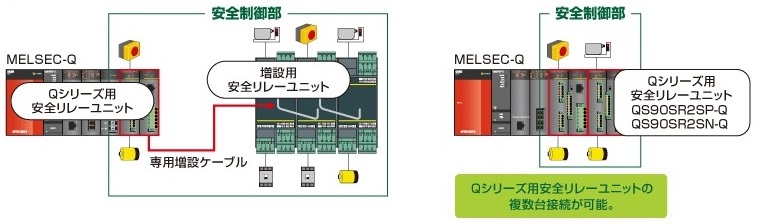

Attached to base unit for Q series

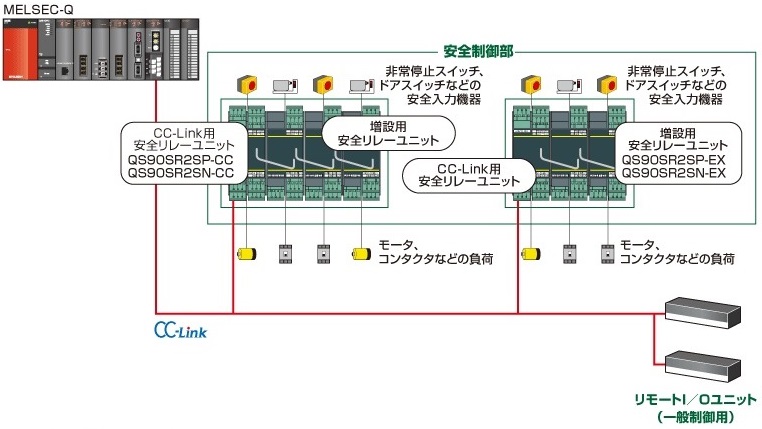

Connect to field network CC-Link
Product Line
Product name | Model name | specification |
---|---|---|
Safety relay unit | QS90SR2SP-Q |
Safety input: 1 point (2 inputs), P type (plus common / plus common input) Safety output: 1 point (3 outputs) for MELSEC-Q series |
QS90SR2SN-Q |
Safety input: 1 point (2 inputs), N type (positive / negative common input) Safety output: 1 point (3 outputs) for MELSEC-Q series |
|
QS90SR2SP-CC |
Safety input: 1 point (2 inputs), P type (plus common / plus common input) Safety output: 1 point (3 outputs) for CC-Link (remote I / O station) |
|
QS90SR2SN-CC |
Safety input: 1 point (2 inputs), N type (positive / negative common input) Safety output: 1 point (3 outputs) For CC-Link (remote I / O station) |
|
Safety relay unit for expansion | QS90SR2SP-EX |
Safety input: 1 point (2 inputs), P type (plus common / plus common input) Safety output: 1 point (3 outputs) |
QS90SR2SN-EX |
Safety input: 1 point (2 inputs), N type (positive / negative common input) Safety output: 1 point (3 outputs) |
|
Safety circuit extension cable | QS90CBL-SE01 | 10cm |
QS90CBL-SE15 | 1.5m |
