Embedded system solution (C controller)
MELSEC-Q series high-end model / OS non-installed model

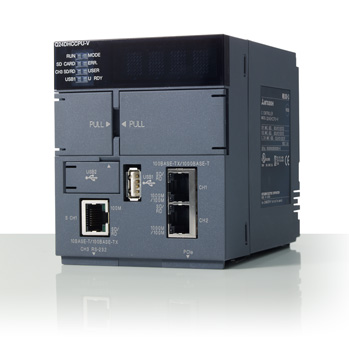

Q24DHCCPU-VG * 1
Q26DHCCPU-LS
2MPU
stable operation, high reliability

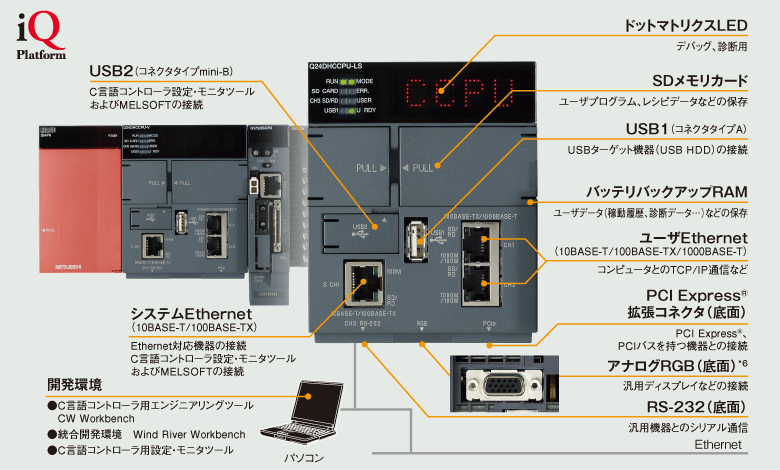

Real-time OS VxWorks ® standard (Q24DHCCPU-V / 24DHCCPU-VG) Partner OS (Q24DHCCPU-LS / 26DHCCPU-LS) iQ Platform compatible dot matrix LED display Ethernet (3ch.), USB x 2, USB x 2, PCI Express ® , RS-232, analog RGB * 2
* 2 Cannot be used with Q24DHCCPU-V.
Information processing utilizing the performance of Intel ® ATOM ™

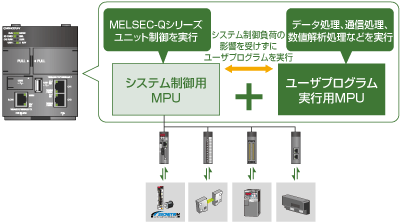

Equipped with 2 MPUs for system control such as MELSEC-Q series module control and MPU for executing user programs.
The user program execution for Intel MPU ® adopted ATOM ™, without being affected by the system control load its performance taking advantage to the full, you can perform the information processing, such as data processing, communication processing.
In addition, the open architecture Q24DHCCPU-LS, in Q26DHCCPU-LS, Intel of the MPU for the execution of the
user program by the customer ® You can install the OS to ATOM ™.
More flexible system expansion with various interfaces

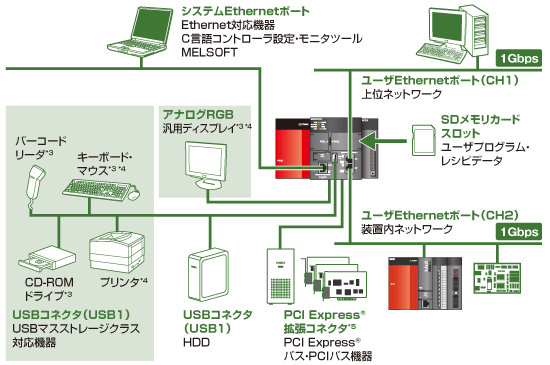

Equipped with 2 channels of Gigabit Ethernet ports used for user programs, a variety of interfaces such as setting and monitoring tools, system Ethernet ports for various MELSOFT connections, SD memory card slots, USB connectors, and PCI Express® expansion connectors. The system can be expanded with higher performance and flexibility, such as higher-speed host communication and support for large-capacity data, and the use of assets of devices with PCI Express ® and PCI buses. In addition, support for Linux ® allows you to utilize a wealth of peripheral devices (drivers) and applications, and expand your system flexibly.
* 4 Available for Q24DHCCPU-VG.
* 5 If you are considering using a PCI Express ® expansion connector, please consult with our nearest branch or distributor.
Product Line
Model name | Overview |
---|---|
Q24DHCCPU-V | Number of I / O points: 4096 points Endian format: Little endian SD memory card: Usable OS: VxWorks ® Version 6.8.1 Work RAM: 512 MB |
Q24DHCCPU-LS | Number of I / O points: 4096 points Endian format: Little endian SD memory card: Usable OS: Non-equipped model (OS installed by customer) Work RAM: 512 MB |
Q26DHCCPU-LS | Number of I / O points: 4096 points Endian format: Little endian SD memory card: Usable OS: Non-equipped model (OS installed by customer) Work RAM: 1 GB |
Model name | Product configuration | ||
---|---|---|---|
C language controller | Pre-installed software | Remarks | |
Q24DHCCPU-VG-B000 * 7 | Q24DHCCPU-VG | GENWARE ® 3-VG runtime license version | Runtime library and Japanese fonts are pre-installed. |
Q24DHCCPU-VG-B001 * 7 | GENWARE ® 3-VG Tool License Edition | The GUI development environment (CI SKETCH) is bundled with the runtime license version. | |
Q24DHCCPU-LS-B003 | Q24DHCCPU-LS | Equipment / equipment maintenance support tool | Error information can be displayed on a general-purpose tablet. |
Q26DHCCPU-LS-B031 | Q26DHCCPU-LS | uLinux Station + | A web-based application that allows basic system configuration of Linux ® systems |
Q24DHCCPU-LS-B030 | Q24DHCCPU-LS | uLinux Station | |
Q24DHCCPU-LS-B040 | Q24DHCCPU-LS | OPC UA Server Software Device Gateway® | Easy two-way communication between production equipment and IT systems. |
