Embedded system solution (C controller)
MELSEC-Q series standard model
1MPU
high reliability
Compact size

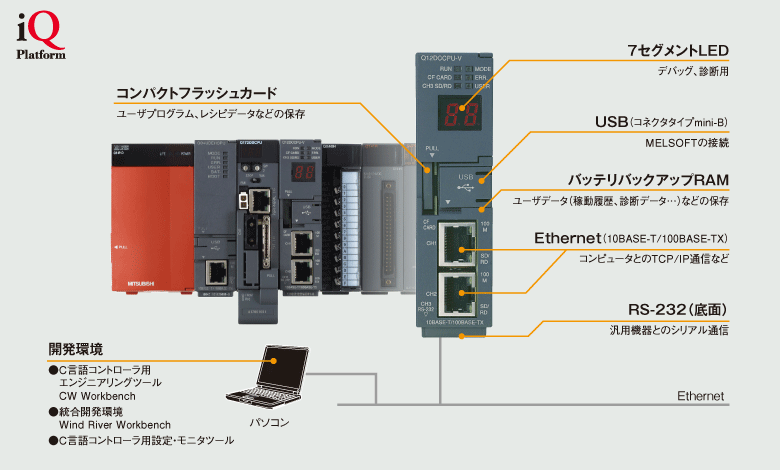

Real-time OS VxWorks ® 7-segment LED display Ethernet compatible with iQ Platform (2ch.), USB, RS-232
* 2 Cannot be used with Q24DHCCPU-V.

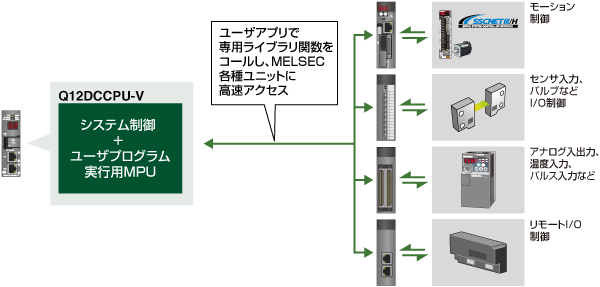

Access various MELSEC-Q series modules directly from the user program
The user program allows direct access to various MELSEC-Q series modules using Mitsubishi Electric's dedicated library functions, realizing high-speed, high-precision control.
Added function expansion mode * 1
new 12MB standard ROM is provided for storing user files.
modules are more easily supported by the SW4PVC-CCPU, so parameters of various intelligent function modules and network modules can be easily set with one tool.
Ethernet port with built-in CPU supports SLMP (MC protocol).
access right function and service stop function are supported.
Product Line
| Model name | Overview |
|---|---|

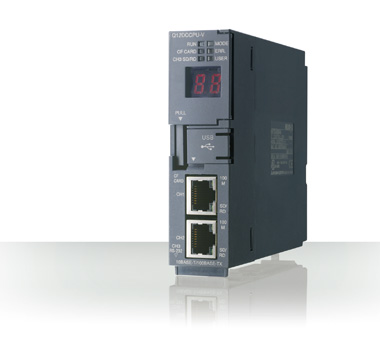

| Q12DCCPU-V | Number of I / O points: 4096 points Endian format: Little endian Compact flash card: Usable OS: VxWorks ® Version 6.4 Work RAM: 128 MB |
| Pre-installed software | Pre-installed software | Remarks |
|---|---|---|
| Q12DCCPU-V-BZ10 | SECS / GEM communication software non-GEM version | Compatible with SECS-II (SEMI E4), HSMS (SEMI E37) and SECS-II (SEMI E5). |
| Q12DCCPU-V-BZ12 | SECS / GEM communication software GEM version | Compatible with SECS-Ⅰ (SEMI E4), HSMS (SEMI E37), SECS-Ⅱ (SEMI E5) and GEM (SEMI E30). (Trace data collection, limit monitoring, process program management, and document file output are not supported.) |
| Q12DCCPU-V-BZ14 | SECS / GEM Communication Software GEM Advanced Edition | Compatible with SECS-Ⅰ (SEMI E4), HSMS (SEMI E37), SECS-Ⅱ (SEMI E5) and GEM (SEMI E30). (Supports trace data collection, limit monitoring, process program management, and document file output) |
| Q12DCCPU-V-BZ18 | Automatic data collection software | The message transmission function is carried. |
| Q12DCCPU-V-BZ1A | Simple version of automatic data collection software | The message transmission function is not installed. |
