C language intelligent functional unit, Arm ® dual-core base, VxWorks ® the Version 6.9 with built-in, because you can run multiple programs at the same time, you can build a real-time system with robust not inferior to the PC-based system. By implementing arithmetic processing by C / C ++ programs, it can be used as a test for manufacturing quality and as a gateway for different communication protocols. The fanless structure makes it ideal for use in clean rooms where dust is not allowed.

Support complex arithmetic processing with C / C ++

Ladder programs for I / O control can be easily constructed, but programming for processing complex technical calculations and character strings requires a great deal of development time and maintenance. Using the C language intelligent function module, C / C ++ programs can be executed from ladder programs, ladder programs can be executed from C / C ++ programs, and interrupt processing can be performed. Complicated ladder program creation can also be assisted by C / C ++, making it easier to create more complex programs while reducing the overall program capacity. Also, by using the C language intelligent function module for the processing part of the ladder program that wants to maintain confidentiality, it is possible to prevent the leakage of proprietary technology.

Easy application development

Workbench CW * 1 programming in C / C ++ language using, and VxWorks with no hardware by using a CW-Sim and Sim Standalone-CW ® you can do simulation of.

* 1. Refer to “ Performance Specifications ” for details of each software .

Data analysis library

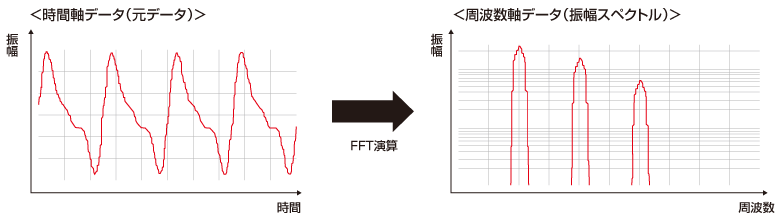

Functions that perform data analysis and judgment processing, such as FFT ^{* 1} operation and digital filter operation, that are difficult to achieve with the ladder of the sequencer CPU, are available as a library for the iQ-R series C language intelligent function module ⇒ Data analysis and judgment processing It can be easily realized.

* 1 Fast Fourier Transform: A process that quickly converts time-axis data to frequency-axis data to calculate how many frequency components are included in the collected data.

Lineup function list

FFT operation
Digital filter operation
Calculate intersection of specified waveform and reference specified value
Upper / lower limit judgment between specified waveform and reference specified value
Upper / lower limit judgment of specified waveform and reference specified waveform

Product Line

Model name	Overview
RD55UP06-V	Endian format: Little endian SD card: Usable OS: VxWorks ® Version 6.9

Model name	Pre-installed software	Remarks
RD55UP06-V-BZ10	SECS / GEM communication software non-GEM version	Compatible with SECS-II (SEMI E4), HSMS (SEMI E37) and SECS-II (SEMI E5).
RD55UP06-V-BZ12	SECS / GEM communication software GEM version	Compatible with SECS-Ⅰ (SEMI E4), HSMS (SEMI E37), SECS-Ⅱ (SEMI E5) and GEM (SEMI E30). (Trace data collection, limit monitoring, process program management, and document file output are not supported.)
RD55UP06-V-BZ14	SECS / GEM Communication Software GEM Advanced Edition	Compatible with SECS-Ⅰ (SEMI E4), HSMS (SEMI E37), SECS-Ⅱ (SEMI E5) and GEM (SEMI E30). (Supports trace data collection, limit monitoring, process program management, and document file output)
RD55UP06-V-B050	Thermo monitoring software	You can obtain and output temperature values from GigE-compliant thermo cameras.
