Instrumentation solution (MELSEC instrumentation)
Continuous liquid sterilization

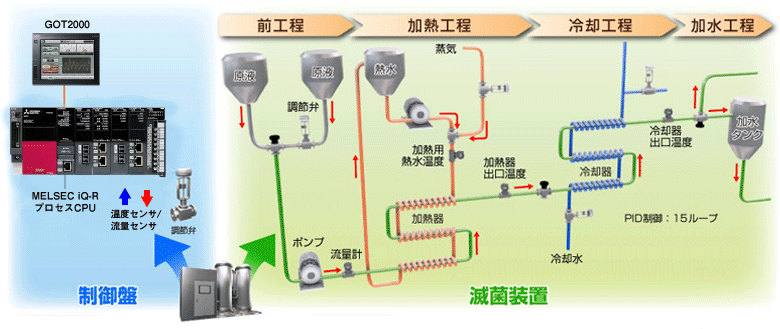

Application to continuous liquid sterilizer
This is an example of application to a device that continuously sterilizes fruit juice. In the heater, the undiluted juice of juice flowing at the specified flow rate is sterilized by heating using high-temperature steam generated by hot water.
The sterilized stock solution is cooled in a cooler with cooling water and diluted for drinking in the watering process.
Control contents
Corresponding connection destination
pre-process | Pump flow control |
---|---|
Heating process | Overheat cascade control |
Cooling process | Cooling control |
Water addition process | Hydration tank liquid level control |
Benefits
Compensation calculation, operation pattern specification using a program setting device, and automatic data setting are easily realized using FBD programs.
System construction time has been reduced by 30% compared to conventional systems.
System construction time has been reduced by 30% compared to conventional systems.

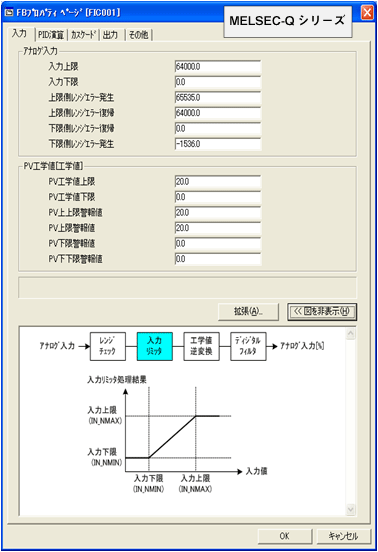

Operation patterns can be easily set with the preview display.
