Instrumentation solution (MELSEC instrumentation)
Steel
We propose the MELSEC iQ-R series, MELSEC-Q series, MC Works64, and display GOT for monitoring and control of each process and utility at steelworks. A highly reliable system can be constructed by duplicating the CPU, network, and SCADA server. By connecting the sequencer integratedly with the CC-Link IE Controller Network and dispersing and connecting the I / O with the CC-Link IE Field Network, a network-layered system can be constructed.
- Integrates electric control and instrumentation control into a single CPU from the conventional method, which consists of a controller for loop control and a separate controller for sequencer and electric control. As a result, a system with high cost performance, such as low cost, space saving, and high-speed controllability, is realized.
- High-resolution control enables high-resolution PID pulse width control. Greatly improved level controllability due to improved accuracy and response of stopper position control

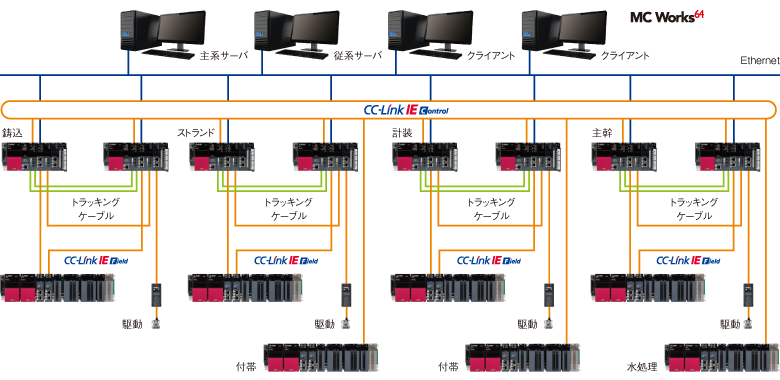

System configuration
