Instrumentation solution (MELSEC instrumentation)
MC Works64 link function

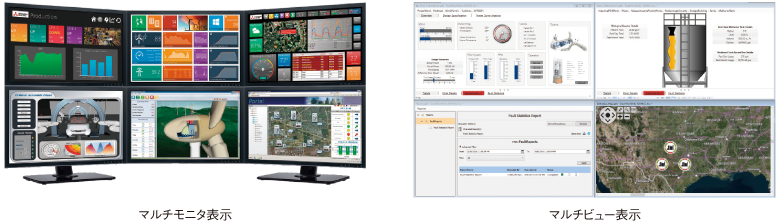

Building a comfortable monitoring and control system
A comfortable monitoring and control system can be built by linking with MC Works64 Functions such as energy management, scheduling, alarm / event management, trend display, report creation, high-speed data collection, wide area monitoring, etc., monitor the entire factory and contribute to improving customer productivity and quality.

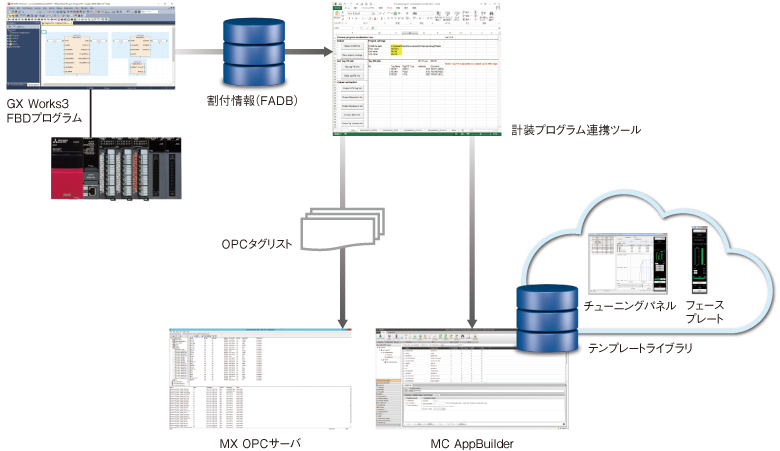

Instrumentation program linkage function
MC AppBuilder can easily generate faceplate templates and device / tag assignment information for OPC servers in cooperation with GX Works3 and PX Developer, contributing to a reduction in man-hours.
Universal Connectivity Open connectivity
MC Works64 supports multiple protocols by using the MX OPC server, and can connect with various FA products. In addition, by using a partner Takebishi OPC server, you can connect to controllers from other companies.
Supports OPC UA function.
Monitor and operate devices with OPC UA
Supports automatic generation of OPC UA server settings within MC AppBuilder
Communication software compatible with MELSEC sequencer.
MX OPC server supports DNP3.0 and IEC60870-5.
Monitors and operates DNP3.0 and IEC60870-5 compatible devices
[DNP3.0 / Open communication protocol used in power and water supply facilities]
[IEC60870-5 / Open communication protocol used in the power industry]
Model | MX OPC UA server | MX OPC server |
---|---|---|
MELSEC iQ-R series CPU | ● | ● |
MELSEC iQ-R series motion CPU | ● | ● |
MELSEC iQ-F series CPU | ● | ● |
MELSEC-Q series CPU | ● | ● |
MELSEC-Q series motion CPU | ● | ● |
MELSEC-L series CPU | ● | ● |
MELSEC-F series CPU | ● | ● |
MELSEC-A series CPU | ─ | ─ |
Energy-saving data collection server (EcoServerⅢ) | ─ | ● |
Air conditioning centralized controller (G-150AD) | ─ | ● |
[Supported communication paths] Serial, Ethernet, CC-Link IE Controller Network, CC-Link IE Field Network, MELSECNET / H, MELSECNET / 10, CC- Link * 1. Not supported by MX OPC UA server.

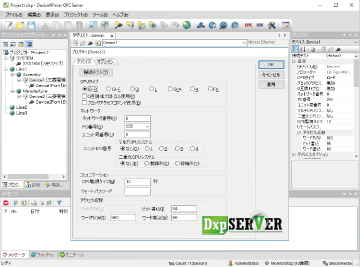

Partner products
Communication software for PLC CPU, C Controller, Motion CPU, GOT (HMI), etc. You can access production information via various networks including Ethernet and CC-Link.
[Compatible models]
MELSEC iQ-R / iQ-F / Q / L / QnA / A / F series,
Display GOT2000 series,
CNC numerical controller M700V / M70V series, Energy saving
data collection server EcoServer Eco,
Energy saving demand monitoring server E- Energy,
energy measurement unit EcoMonitorLight,
smart meter M5CM-RAL / RL type
[Supported networks]
Ethernet, serial, CC-Link, CC-Link IE, MELSECNET / H
[Regions]
Japan, China, Asia (other than Japan and China), Europe, North America, Latin America, Africa
