Instrumentation solution (MELSEC instrumentation)
Mitsubishi Electric Engineering Co., Ltd.

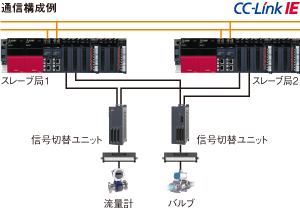

Supports MELSEC iQ-R series I / O redundant system
A system can be constructed by combining input / output units corresponding to each signal.
Power and I / F cables are available as optional cables
Select the terminal block and terminal block I / F cable from "FA Goods"
| type | Model name | Channel score | MELSEC iQ-R series compatible module | Overview |
|---|---|---|---|---|
| DI unit (digital input) | MH1DI-F | 16 points | RX40NC6B | Distributes the input signal. Only the first 16 points are used. |
| MH2DI-F | ||||
| DO unit (digital output) | MH6DO-F | 16 points | RY40PT5B | Switches the output signal. Supports output disconnection detection function. |
| AI unit (analog input) | MH1AI-F | 16 points |
R60AD8-G R60AD16-G R60AD4 R60ADV8 |
Converts input signal 4-20mA to 1-5V and distributes. |
| MH4AI-F | ||||
| AO unit (analog output) | MH6AO-F | 8 points |
R60DA8-G R60DA16-G R60DA4 R60DAI8 |
Switches the output signal. Supports output disconnection detection function. |
| Power supply unit | MH4PS-AC | ─ | ─ | Supports redundant power supply. |
| MH4PS-DC |

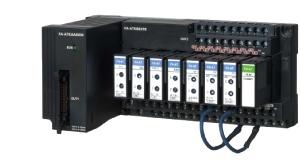

A signal conversion module for various analog signals is available to optimize the configuration of sequencer analog units. Insulation between channels prevents current sneak The signal conversion module can be easily attached and detached A dedicated cable for the PLC analog unit is prepared, and one-touch connection is possible without wiring errors.
Contact: Mitsubishi Electric Engineering Corporation
Central Japan Sales Office: TEL: 052-565-3435 FAX: 052-541-2558
West Japan Sales Office: TEL: 06 -6347-2926 FAX: 06-6347-2983
Chuo-Shikoku Branch ... TEL: 082-248-5390 FAX: 082-248-5391
Kyushu Branch ... TEL: 092-721-2202 FAX: 092-721-2109
Nagoya Office FA Goods Technology Section
(FA Goods, Analog Converter)
TEL: 052-723-8058 FAX: 052-723-8062
Nagoya Office Technical Support Center
(FL-net Interface Unit)
TEL: 0568-36-2068 FAX ： 0568-36-2045
Mitsubishi Electric System Service Co., Ltd.
QP-AW QG-AW QG-B QG-BU QG-C QG-DL QG-VCT
The short-distance cable inside the board is a plastic material, so it is hard to break * 1 and bend-resistant * 2 cable
With a rich lineup, it can support various installation environments. Recommended product of CC-Link Partner Association
Indoor and outdoor cables have the same allowable tension as outdoor reinforced types without tension members and can be pulled directly.
Indoor UL certified cable QG-BU is a UL Listed (UL TYPE OFNR) compliant cable with high flame retardance that has passed the riser combustion test of UL1666.
Outdoor reinforced cable is waterproof and can withstand flooding and temporary submersion
Connector boots with improved bending characteristics reduce disconnection at the root of the connector
| Model name | QP-AW | QG-AW | QG-B | QG-BU | QG-VCT | QG-C | QG-DL | |
|---|---|---|---|---|---|---|---|---|
| Usage environment / use | For short distance inside the panel | Inside the board | indoor | UL certified product for indoor | Indoor movable parts | Outdoors/td> | Outdoor reinforcement type (water barrier) | |
| Maximum cable length | Up to 10m | Up to 550m | ||||||
| Optical fiber type | Multimode optical fiber (GI) | |||||||
| Material / Outer diameter | core | Plastic / 55 ± 5μm | Quartz glass / 50 ± 3μm | |||||
| Cladding | Plastic / 490 ± 5μm | Quartz glass / 125 ± 2μm | ||||||
| Cable jacket | PVC (blue) / ø2.0mm x 2 pcs | PVC (orange) / ø2.0mm x 2 | Flame retardant PE (orange) /ø6.0mm | Flame retardant PVC (blue) / ø5.0mm | Elastic PVC (orange) /ø6.0mm | Flame retardant PE (black) /ø6.0mm | LAP sheath (black) / 10.0mm (2, 4 cores), 11.0mm (6 cores), 12.0mm (8 cores) | |
| Operating temperature range | -20 ℃ ～ 60 ℃ | |||||||
| Applicable connector | LCF connector * 3 , SC connector * 4 , FC connector * 4 | |||||||
* 2. The allowable bending radius is about 1/2 times that of QG-AW.
* 3. Connection with CC-Link IE controller network products is LCF connector. (LCF connector: two LCF connectors connected) When laying the optical fiber cable for CC-Link IE Controller Network, refer to the laying manual issued by the CC-Link Partner Association.
* 4. QP-AW does not support SC connector and FC connector.
DMC-1000TL-DC DMC-1000TS-DC

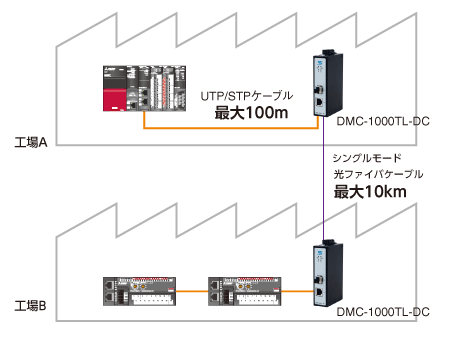

The distance between stations can be extended by converting 1000BASE-T / 100BASE-TX to 1000BASE-LX / SX (DMC-1000TL-DC: up to 10km, DMC-1000TS-DC: up to 550m) Noise-resistant performance compatible with FA environments, and can be used as a measure against noise and lightning on communication lines UL, CE, and FCC standards have been acquired, so it can be exported to Europe and the United States.
| Items | DMC-1000TL-DC | DMC-1000TS-DC | |
|---|---|---|---|
| Compliant standards | IEEE802.3Z (1000BASE-LX) | IEEE802.3Z (1000BASE-SX) | |
| Applicable cable | type | Single mode optical fiber cable for 1000BASE-LX | 1000BASE-SX compatible multimode optical fiber cable |
| connector | Double LC connector (IEC61754-20) | Dual LC connector (IEC61754-20 compliant) | |
| Polishing method | PC, SPC polishing | PC, SPC polishing | |
| Connection | Cross connection (A side connector on one end is connected to the other B side connector) |
Cross connection (A side connector on one end is connected to the other B side connector) |
|
| Estimated transmission distance | Up to 10km | Up to 550m | |
Northern Japan Branch: TEL: 022-353-7814 Hokkaido Branch: TEL: 011-890-7515 Tokyo Kiden Branch : TEL: 03-3454-5511 Chubu Branch : TEL: 052- 722-7602 Hokuriku Branch ・ ・ ・ ・ TEL ： 076-252-9519 Kansai Branch ・ ・ ・ ・ TEL ： 06-6454-0281 Chushikoku Branch ・ ・ ・ ・ TEL: 082-285-2111 Shikoku Branch ・ ・ ・・ ・ TEL ： 087-831-3186 Kyushu branch ・ ・ ・ ・ ・ ・ ・ TEL ： 092-483-8208
