Instrumentation solution (MELSEC instrumentation)
MELSEC-Q series
By using a general-purpose sequencer, you can build your own system. From simple loop control to complicated loop control, it realizes fine instrumentation control according to process conditions. Instrumentation control and sequence control can be executed by one CPU, so it can be used for systems that require higher-speed sequence control. In addition, a variety of functional units such as analog and temperature control are available to fully meet control needs. Just control is realized by combining with a CPU unit.

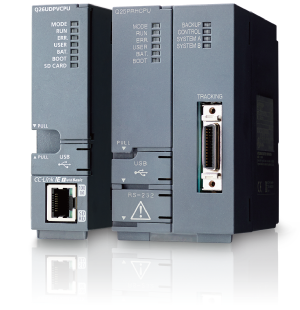

CPU performance specifications
Items | Universal model process CPU | Redundant CPU | ||||
---|---|---|---|---|---|---|
Q04UDPVCPU | Q06UDPVCPU | Q13UDPVCPU | Q26UDPVCPU | Q12PRHCPU | Q25PRHCPU | |
Sequence control language | Relay symbol word, logic symbolic language * 1 , MELSAP3 (SFC), MELSAP-L, function block, structured text (ST) | |||||
Process control language | FBD for process control (programmed by PX Developer) | |||||
LD X0 [ns] | 1.9 | 1.9 | 1.9 | 1.9 | 34 | 34 |
MOV D0 D1 [ns] | 3.9 | 3.9 | 3.9 | 3.9 | 102 | 102 |
Tracking execution time * 2 [ms] | ─ | ─ | ─ | ─ |
Device memory 48K word point: 10 Device memory 100K word point: 15 |
|
Constant scan * 3 [ms] |
0.5 to 2000 (can be set in units of 0.1 ms) * 4 |
0.5 to 2000 (can be set in 0.5ms units) * 4 |
||||
Memory capacity * 5 | ||||||
Program capacity * 6 [bytes] | 40K steps (160K) * 7 | 60K steps (240K) * 7 | 130K steps (520K) * 7 | 260K steps ( 1040K ) * 7 | 124K steps (496K) | 252K steps ( 1008K ) |
Program memory (drive 0) [bytes] | 160K | 240K | 520K | 1040K | 496K | 1008K |
Memory card (RAM) (drive 1) | ─ | ─ | ─ | ─ | For the installed memory card capacity (maximum 2 MB) |
|
Memory card (SD) (drive 2) | Installed SD memory card (SD / SDHC) capacity (up to 32 GB) | ─ | ─ | |||
Memory card (ROM) (drive 2) | ─ | ─ | ─ | ─ |
For the installed memory card capacity (Flash card: maximum 4 MB, ATA card: maximum 32 MB) |
|
Standard RAM (drive 3) [bytes] | 256K * 8 | 768K * 8 | 1024K * 8 | 1280K * 8 | 256K | 256K |
Standard ROM (drive 4) [bytes] | 1025.5K | 1025.5K | 2051K | 4102K | 496K | 1008K |
* 1. Logic symbolic words cannot be used with QnUDPVCPU because they are not supported by GX Works2.
* 2. Extended scan time.
* 3. This function keeps the scan time constant.
* 4. Can be set using parameters.
* 5. The unit of the file size stored in the memory area differs depending on the CPU unit.
* 6. The maximum number of sequence steps that can be executed is as shown in the right formula. (Program capacity)-(File header size (default: 34 steps))
* 7. When replacing QnPHCPU with QnUDPVCPU, the number of program steps may increase or decrease.
* 8. When using the extended SRAM cassette, it can be expanded up to 8M bytes.
* 2. Extended scan time.
* 3. This function keeps the scan time constant.
* 4. Can be set using parameters.
* 5. The unit of the file size stored in the memory area differs depending on the CPU unit.
* 6. The maximum number of sequence steps that can be executed is as shown in the right formula. (Program capacity)-(File header size (default: 34 steps))
* 7. When replacing QnPHCPU with QnUDPVCPU, the number of program steps may increase or decrease.
* 8. When using the extended SRAM cassette, it can be expanded up to 8M bytes.
Click here for the lineup of process control function units . Click here for the network unit lineup .
