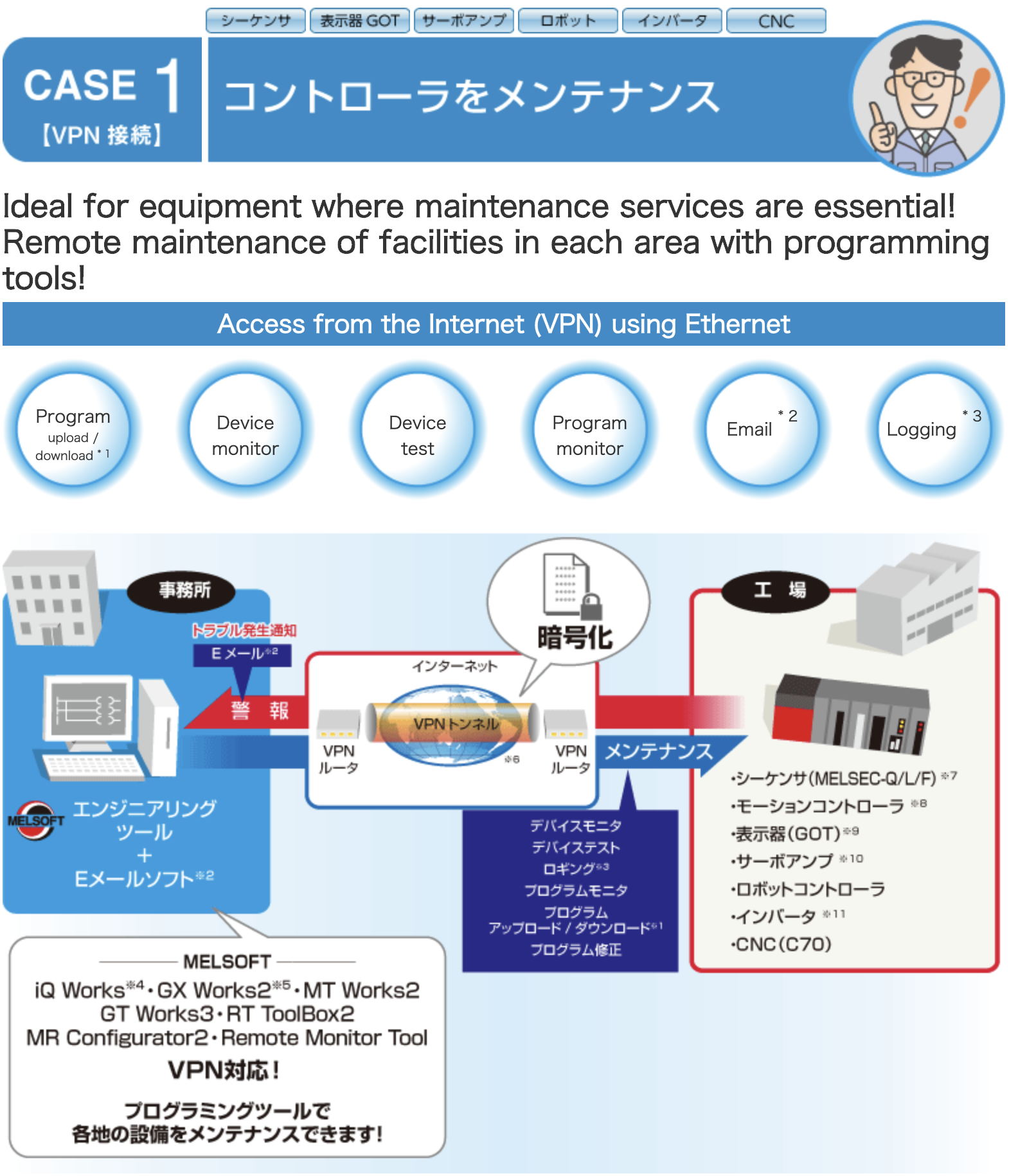

Remote solution
Controller maintenance
* 1)
When downloading (writing), be careful of the actual situation at the site.
* 2) PLC (MELSEC-Q / L) when using Ethernet interface module. PLC (MELSEC-F) when using Ethernet interface block. Display (GOT) is when using GT27, 16, 15 models.
* 3) When using MELSEC-Q series universal model high speed type QCPU, MELSEC-L series CPU module.
※Four) iQ Works is a product that integrates engineering software. GX Works2, MT Works2, GT Works3, RT ToolBox2 are included.
※Five) GX Developer is also supported.
* 6) Partners who provide VPN connection services are helping to build a VPN system .
* 7) The built-in Ethernet CPU module (MELSEC-Q / L), Ethernet interface module (MELSEC-Q / L), Ethernet interface block (MELSEC-F), and Ethernet communication special adapter (MELSEC-F) are supported.
* 8) When the programmable controller Ethernet built-in CPU module or Ethernet interface module is used.
* 9) When using a model that supports Ethernet.
※Ten) Via the motion controller.
(* 11) When using the sequencer.
* 2) PLC (MELSEC-Q / L) when using Ethernet interface module. PLC (MELSEC-F) when using Ethernet interface block. Display (GOT) is when using GT27, 16, 15 models.
* 3) When using MELSEC-Q series universal model high speed type QCPU, MELSEC-L series CPU module.
※Four) iQ Works is a product that integrates engineering software. GX Works2, MT Works2, GT Works3, RT ToolBox2 are included.
※Five) GX Developer is also supported.
* 6) Partners who provide VPN connection services are helping to build a VPN system .
* 7) The built-in Ethernet CPU module (MELSEC-Q / L), Ethernet interface module (MELSEC-Q / L), Ethernet interface block (MELSEC-F), and Ethernet communication special adapter (MELSEC-F) are supported.
* 8) When the programmable controller Ethernet built-in CPU module or Ethernet interface module is used.
* 9) When using a model that supports Ethernet.
※Ten) Via the motion controller.
(* 11) When using the sequencer.
You can monitor programs from remote locations!
Example) In case of PLC (MELSEC-Q / L) (The same operation can be performed with other devices.)
Components
Connection method | Internet (VPN) |
The office | GX Works2 * 1 (or GX Developer) |
Factory | CPU module with built-in Ethernet |
* 1 The same operation can be performed with GX Developer or GX Works2 included in iQ Works.
You can monitor equipment programs with GX Works2.
STEP 1 Start GX Works2

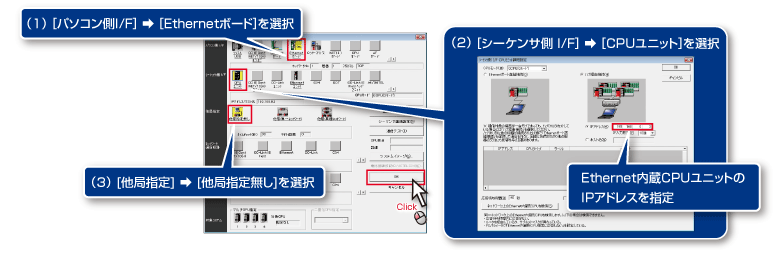

STEP 2 Select (1)-(3) and click the [OK] button.

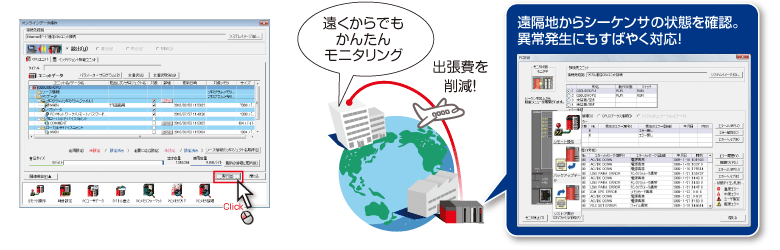

STEP 3 Start remote operation
