Remote solution
Easy monitoring using the Internet (Web)
background-color: #6A940F; | Email notification | |||
Device monitor | Device test | Logging | ||
MELSEC-Q series Web server unit |
○ | ○ | ○ | ○ |
MELSEC-Q series / L series Ethernet interface module |
○ * 1 | ○ * 1 | - | ○ |
MELSEC-F series Special adapter for Ethernet communication |
○ | - | - | - |
MELSEC-F series Ethernet interface block |
- | - | - | ○ |
* 1) A separate web server (computer running web server software) is required.
For details, refer to MELSEC-Q / L Ethernet Interface Module User's Manual (Web Function Edition) [SH (NA) -080144].
For details, refer to MELSEC-Q / L Ethernet Interface Module User's Manual (Web Function Edition) [SH (NA) -080144].
You can check the operating status of each factory using a web browser or email!
Example) Web server unit (MELSEC-Q)
Components
Connection method | Internet (Web) |
The office | Web browser, email software |
Factory | Web server unit |

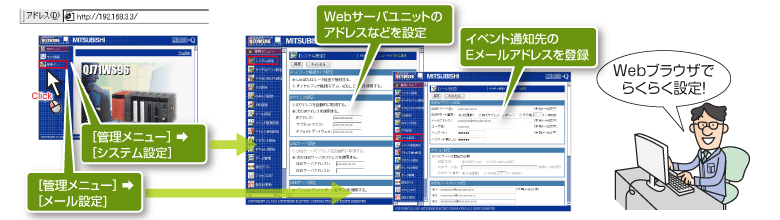

STEP 1 System setting
Access the web server unit using a web browser. Enter the communication item.

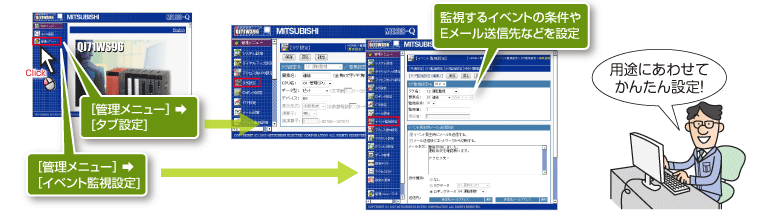

STEP 2 Set remote monitoring items
Set the monitoring items according to the application.

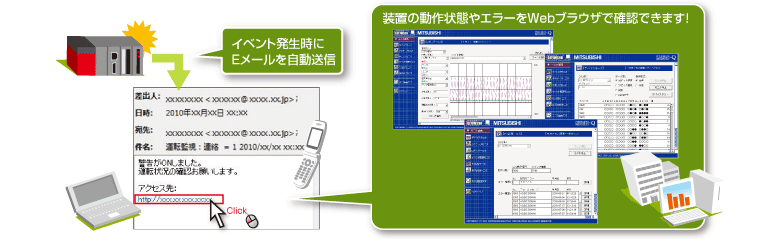

STEP 3 Start remote monitoring!
Catch event occurrences by email!
