Inverter
Inverter FR-A800 series + CC-Link IE Field network compatible built-in option
item | specification |
---|---|
shape | Inverter option type, RJ-45 connector connection method |
Transmission speed | 1Gbps |
Communication method | Token passing method |
Number of connected units |
Up to 120 units ( up to 64 units when connecting only inverters and using 128 words of transmission data), can be shared with other models |
Maximum inter-node distance | 100m |
Maximum number of branches | No limit if on the same Ethernet |
topology | Line, star, ring, line / star mixed |
Connection cable | Ethernet cable (IEEE 802.3 1000BASE-T standard cable ANSI / TIA / EIA-568-B (Category 5e) compliant 4-pair balanced shielded cable) |
Connector | RJ-45 with shield |
Key features for remote solutions | Parameter setting function (read, write, etc.) Operation function (forward / reverse operation command, frequency command, etc.) Monitor function (operation status monitor, I / O signal monitor, etc.) Maintenance function (part life display, maintenance timer alarm, Current average value monitor, etc.) |
Compatible software | iQ Works, GX Works2 |
Compatible inverter | FR-A800 series |

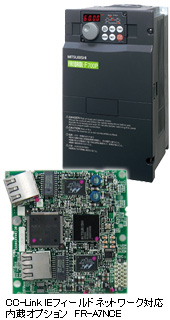

Inverter FR-F700P series + CC-Link IE Field network compatible built-in option
item | specification |
---|---|
shape | Inverter option type, RJ-45 connector connection method |
Transmission speed | 1Gbps |
Communication method | Token passing method |
Number of connected units | Up to 120 units ( up to 64 units when connecting only inverters and using 128 words of transmission data), can be shared with other models |
Maximum inter-node distance | 100m |
Maximum number of branches | No limit if on the same Ethernet |
topology | Line, star, ring, line / star mixed |
Connection cable | Ethernet cable (IEEE 802.3 1000BASE-T standard cable ANSI / TIA / EIA-568-B (Category 5e) compliant 4-pair balanced shielded cable) |
Connector | RJ-45 with shield |
Key features for remote solutions | Parameter setting function (read, write, etc.) Operation function (forward / reverse operation command, frequency command, etc.) Monitor function (operation status monitor, I / O signal monitor, etc.) Maintenance function (part life display, maintenance timer alarm, Current average value monitor, etc.) |
Compatible software | iQ Works, GX Works2 |
Compatible inverter | FR-A700, FR-F700P series |
