Contact displacement sensor
Inspection of workpiece shape and assembly accuracy, and detection of workpiece position are possible. It is hardly affected by dew condensation and oil, and can obtain stable high accuracy even in severe environments.

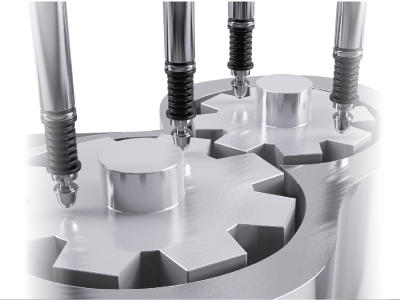

Assembled parts measurement
Check that the parts are correctly assembled within the tolerances.
Magnescale Co., Ltd.
・ Digital gauge DF800S series,
DT series
・ Compact display for DF series MF10 series
・ Interface unit for digital gauge DF series MG50 series
・ Compact display for DF series MF10 series
・ Interface unit for digital gauge DF series MG50 series
- Slim & compact, space saving. Reduce man-hours for mechanical design
- High rigidity and high durability achieved by adopting a unique structure of ball spline spindle
- Achieved in-house sliding durability evaluation of 210 million times
- High accuracy and environmental resistance compatible with unique magnetic detection principle and arithmetic processing circuit
- Easy program setting with only 3 steps of NO / GO setting
- Complex programs can be easily created by using function blocks
- Attached to the national metrology standard is an accuracy table measured by a traceable measuring device
- Proposal of appropriate measuring instruments for various measurement situations with various lineups
URL | http://www.magnescale.com |
phone | Product Inquiries 052-587-1823 |
Reception | Weekdays 8: 30-17: 30 |
Panasonic Device SUNX Co., Ltd.
・ CC-Link communication unit SC-HG1-C
・ Contact type digital displacement sensor HG-S series * 1
・ Contact type digital displacement sensor HG-S series * 1
* 1. Separate use of sensor head and connection cable
[Digital displacement sensor CC-Link compatible communication unit SC-HG1-C]
- Directly transfer up to 15 displacement sensor measurement values to a higher order via a CC-Link compatible communication unit
[Contact type digital displacement sensor HG-S series]
- Optical absolute method achieves the highest accuracy in the class without "jumping value" and "forgetting zero point"
- Flat bearing 2-point support structure with excellent lateral load resistance, contributing to longer sensor life
- Controller adopts dual display of two-stage digital display
- NAVI function for intuitive and easy-to-understand operation
* 1. Calculation results of two sensor heads can be output.
URL | http://panasonic.net/id/pidsx/ |
phone | Technical consultation telephone service Toll free number 0120-394-205 |
Reception | Weekdays 9: 00-17: 00 (excluding 12: 00-13: 00) |
Citizen Fine Device Co., Ltd.
・ Digital gauge SA series
・ CC-Link communication unit SA-ECL
- CC-Link communication unit enables high-speed communication up to 10Mbps
- Detector is robust and durable due to double bearing structure in addition to the adoption of an absolute system that does not cause miscounting
- Detectors are also available in an air purge specification (SA-S110AP, 510AP) that is resistant to oil and mist environments, and an air drive specification (SA-S110PD, SA-S510PD) that enables simplified mechanism design.
URL | http://cfd.citizen.co.jp |
phone | Industrial Equipment Department, Measurement Equipment Division Sales Group: 0555-22-1141 (FAX: 0555-23-2106) |
Reception | Weekdays 9: 00-17: 00 (except 12: 00-13: 00) |
List of compatible models
●: Supported ―: Not supported
Company name | Series / model name | Connection method | |||||
---|---|---|---|---|---|---|---|
AnyWire ASLINK | CC-Link | CC-Link IE Field | CC-Link IE Field Basic | Ethernet | Bus connection | ||
Magnescale Co., Ltd. | Interface unit for digital gauge DF series MG50-CL * Compatible with digital gauge DF800S series, DT series, interpolator MT20 for DT series, and small display MF10 for DF series | ― | ● | ― | ― | ― | ― |
Panasonic Device SUNX Co., Ltd. | Communication unit for CC-Link SC-HG1-C * Compatible with contact type digital displacement sensor HG-S series |
― | ● | ― | ― | ― | ― |
Citizen Fine Device Co., Ltd. | CC-Link communication unit SA-ECL * Compatible with digital gauge SA series |
― | ● | ― | ― | ― | ― |
- For the supported versions of each product, refer to the iQ Sensor Solution Reference Manual SH-081132-V.
- For detailed specifications of each product, refer to the partner product manual.
