iQ Sensor Solution (iQSS)
Edge measurement sensor

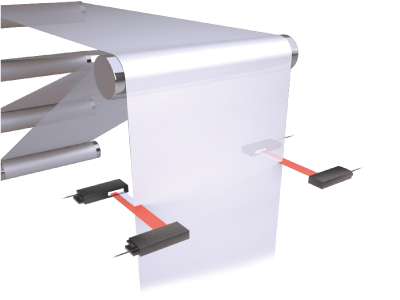

The position and width can be measured, such as the meandering position of the sheet material and the position within the measurement width.
Lithium battery winding machine measurement
The compact design enables measurement at a position close to the winding core, improving the inspection system for meandering measurement and distortion measurement.
Panasonic Device SUNX Co., Ltd.
HG-T series transmission digital displacement sensor
・ CC-Link communication unit SC-HG1-C
・ Transmissive digital displacement sensor HG-T series
・ Transmissive digital displacement sensor HG-T series
* 1. Separate use of sensor head and connection cable
- The transmission-type digital displacement sensor HG-T uses a 10 mm band laser for light projection. Achieved high-accuracy position measurement using a CMOS element for light reception (when the installation distance is 20 mm: repeatability 1 μm, average number of times 16)
- The sensor shape is a thin shape with a thickness of 8 mm, so it can be installed even in applications where the installation space is limited
- Adjustment according to the application is possible, such as a judgment level function that can set the optimum setting for the transparent film and a judgment filter function that can invalidate minute foreign matter.
- Up to 15 displacement sensor measurement values can be directly transferred to the upper level via the CC-Link communication unit SC-HG1-C for digital displacement sensors (mixed connection with the contact displacement sensor HG-S is possible)
* 1. Calculation results of two sensor heads can be output.
| URL | http://panasonic.net/id/pidsx |
| phone | Technical consultation telephone service Toll free number 0120-394-205 |
| Reception | Weekdays 9: 00-17: 00 (excluding 12: 00-13: 00) |
Optex FA Co., Ltd.
Edge measurement sensor TD1 series, displacement sensor amplifier unit CDA series
Edge measurement sensor TD1 series
[Edge measurement sensor TD1 series]
- Ideal for measuring the end position of parts and sheet materials, measuring the width of small electronic components, and measuring the gap between rollers
- Repeatability ± 5μm
[Displacement sensor amplifier unit CDA series]
- CDA series can be used as an amplifier unit
- Computation using two sets of TD1 series is also possible
[CC-Link compatible communication unit UC1-CL11]
- Connectable to displacement sensor amplifier via CC-Link compatible communication unit
- Easy monitoring of measured values and remote monitoring of sensors
| URL | https://www.optex-fa.jp |
| phone | Customer Support Center (Technical Consultation Desk) Toll Free 0800-170-1003 |
| Reception | Weekdays 9: 00-17: 30 |
List of compatible models
●: Supported ―: Not supported
| Company name | Series / model name | Connection method | |||||
|---|---|---|---|---|---|---|---|
| AnyWire ASLINK | CC-Link | CC-Link IE Field | CC-Link IE Field Basic | Ethernet | Bus connection | ||
| Panasonic Device SUNX Co., Ltd. | Communication unit for CC-Link SC-HG1-C * Compatible with HG-T series transmission digital displacement sensor | ― | ● | ― | ― | ― | ― |
| Optex FA Co., Ltd. | Communication unit for CC-Link UC1-CL11 * Compatible with displacement sensor amplifier unit CDA series and edge measurement sensor TD1 series | ― | ● | ― | ― | ― | ― |
* 2. Only compatible with CPU with built-in Ethernet port. (Ethernet unit Ethernet port connection is not supported.)
* 3. MELSEC-Q series is supported.
* 3. MELSEC-Q series is supported.
- For the supported versions of each product, refer to the iQ Sensor Solution Reference Manual SH-081132-V.
- For detailed specifications of each product, refer to the partner product manual.
