iQ Sensor Solution (iQSS)
Fiber sensor
Workpieces can be detected in narrow places where photoelectric sensors cannot be installed or in severe places (high temperatures, vacuum, around chemicals).
Passage detection of extremely small parts

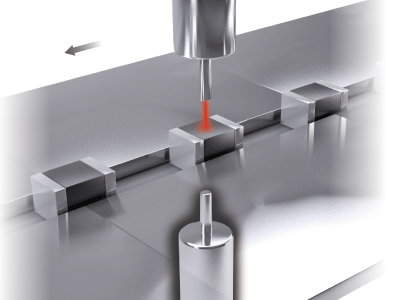

Detects passage of extremely small parts (0402) with fiber. If a thin fiber is used, it is possible to detect light even if the chip is completely incident or blocked.
Anywire Corporation
ASLINKAMP
/ Fiber type B289SB-01AF-CA □ -V
/ Fiber type (with 7 segments) L □ -F1011
・ Fiber type (IP66) BA-F116- □
・ Fiber head AFT- □
/ Fiber type B289SB-01AF-CA □ -V
/ Fiber type (with 7 segments) L □ -F1011
・ Fiber type (IP66) BA-F116- □
・ Fiber head AFT- □
- Lineup of separate type amplifier and fiber head for general-purpose fiber head
- Amplifier directly connected to AnyWireASLINK transmission line without communication unit
- Arbitrary number of stations can be plug-in connected with the configuration of the master unit and slave unit
- Sensing level monitoring is possible
- With an amplifier with 7-segment display, the sensing level can be checked on both the amplifier and the sequencer.
- Operates in a time-sharing manner, so no interference countermeasures are required even if the heads are placed close together
- Sensor sensitivity settings can be written and read from the host
- Easy installation and maintenance work with less wiring
URL | http://www.anywire.jp/ |
phone | Technical support dial 075-952-8077 |
Reception | Weekdays 9: 00-17: 00 |
Panasonic Device SUNX Co., Ltd.
・ CC-Link compatible communication unit SC-GU3-01
・ Digital fiber sensor FX-500, FX-300
・ Digital fiber sensor FX-500, FX-300
- Various sensor amplifiers can be connected via CC-Link compatible communication unit SC-GU3-01 (fiber, laser, pressure sensor)
- Excellent light coupling ability to supply the light from the light emitting element to the fiber head.
- 167 types of fiber heads for each detection environment
- High-spec (bending radius: R4, bending resistance: 10 million times), low-cost tough fiber
URL | http://panasonic.net/id/pidsx/ |
phone | Technical consultation telephone service Toll free number 0120-394-205 |
Reception | Weekdays 9: 00-17: 00 (excluding 12: 00-13: 00) |
Optex FA Co., Ltd.
Communication unit
UC1-CL11 for CC-Link high - speed digital fiber amplifier D3RF series
[CC-Link compatible communication unit UC1-CL11]
- Connectable to sensor amplifier via CC-Link compatible communication unit
- Check output status, read light intensity, write and read set values, and teach
- Multiple fiber amplifiers can be connected with connectors, saving wiring and space and reducing startup time
[High-speed digital fiber amplifier D3RF series]
- Ultra fast response 16μs (single), 22μs (consolidated). 100% display, interference prevention function
[Fiber unit NF series]
- A variety of units available from about 200 models (easy mounting, screw mounting, cylinder, sleeve, bending resistance, no break, regression reflection, small object detection, screen / array, limited reflection, narrow field of view / wafer mapping, heat resistance, chemical resistance, Liquid level, liquid leak / water detection)
URL | https://www.optex-fa.jp/ |
phone | Customer Support Center (Technical Consultation Service) Toll-free 0800-170-1003 |
Reception | Weekdays 9: 00-17: 30 |
List of compatible models
●: Supported ―: Not supported
Company name | Series / model name | Connection method | |||||
---|---|---|---|---|---|---|---|
AnyWire ASLINK | CC-Link | CC-Link IE Field | CC-Link IE Field Basic | Ethernet | Bus connection | ||
Anywire Corporation | ASLINKAMP fiber type B289SB-01AF-CA □ -V * Compatible with fiber head AFT- □ |
● | ― | ― | ― | ― | ― |
ASLINKAMP fiber type (with 7 segments) L □ -F1011 * Compatible with fiber head AFT- □ |
● | ― | ― | ― | ― | ― | |
ASLINKAMP fiber type (IP66) BA-F116- □ * Compatible with fiber head AFT- □ |
● | ― | ― | ― | ― | ― | |
Panasonic Device SUNX Co., Ltd. | CC-Link compatible communication unit SC-GU3-01 * 1 * Compatible with FX-300 series and FX-500 series digital fiber sensors |
― | ● | ― | ― | ― | ― |
Optex FA Co., Ltd. | Communication unit for CC-Link UC1-CL11 * Compatible with high - speed digital fiber amplifier D3RF series | ― | ● | ― | ― | ― | ― |
* 1: Use the connector unit (SC-71) and end unit (SC-GU3-EU) separately, and use the dedicated software SC-PC1 separately.
- For the supported versions of each product, refer to the iQ Sensor Solution Reference Manual SH-081132-V.
- For detailed specifications of each product, refer to the partner product manual.
