iQ Sensor Solution (iQSS)
Laser displacement sensor
Workpiece height measurement and position information acquisition for height control can be performed with high accuracy on the order of microns.

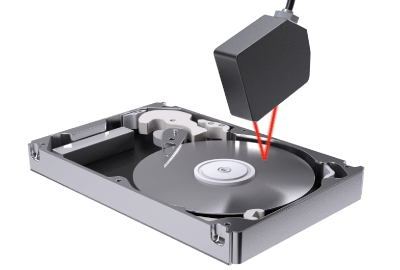

HDD surface shake measurement
Inspect the disk surface height to prevent defective products from flowing out to the post process. By measuring the height of the mirror surface of the disk surface, surface shake and fixing accuracy are measured, and assembly failure is determined.
Mitsubishi Electric Corporation
MELSENSOR laser displacement sensor MH11
Laser displacement sensor MH11
- Industry-leading measurement accuracy and assortment of sensor heads
- Sampling cycle 10μs, minimum resolution 0.01μm, 46 types of sensor heads for various applications
- Controller pursuing affinity with the sequencer
- Equipped with CC-Link IE Field Network Basic interface to enhance eF @ ctory information linkage
- Controller information can be acquired without a program, and sensor settings can be changed from the sequencer
- The display unit can be used as a dedicated console to set parameters and conditions, monitor measured values, etc. (GT2104-PMBDS2)
| URL | To product information of FA sensor MELSENSO |
| phone | Telephone technical consultation desk: 052-799-9495 |
| Reception | Weekdays 9: 00-19: 00 |
Panasonic Device SUNX Co., Ltd.
Ultra-high-speed, high-precision laser displacement sensor HL-C2
Ultra-high-speed, high-precision laser displacement sensor HL-C2
- Industry-leading basic performance (resolution: 0.01 μm, linearity: ± 0.02% FS)
- Abundant head variation distance range 8 types (8/10/15/30/50/85/110 / 350mm)
- Sensor controller can connect 2 heads * 1 \
* 1. Calculation results of two sensor heads can be output.
| URL | http://panasonic.net/id/pidsx/ |
| phone | Technical consultation telephone service Toll free number 0120-394-205 |
| Reception | Weekdays 9: 00-17: 00 (excluding 12: 00-13: 00) |
Optex FA Co., Ltd.
High-performance multi-laser displacement sensor CD5 series, C-MOS laser displacement sensor CD33 series
Sensor head
- ・High performance multi laser displacement sensor CD5 series
- ・C-MOS laser displacement sensor CD33 series Control unit
- ・Displacement sensor Control unit UQ1 series * 1
* 1. Compatible with MELSEC-Q series
[High-precision multi-laser displacement sensor CD5 series]
- Class-leading repeatability and linearity
- Various sensor heads such as transparent / mirror surface measurement, class longest 2m type
[C-MOS laser displacement sensor CD33 series]
- Approximately 65 g ultra-light design, ideal for equipment integration
- Specular reflection type that can measure transparent and specular objects is also available
[Displacement sensor control unit UQ1 series]
- Easy connection to the displacement sensor by simply inserting it into the base unit of the sequencer, no cumbersome communication settings required
- The unit itself processes the acquisition, calculation, judgment, and output of measured values automatically, and no program is required on the sequencer side
- Realized 1/3 total cost compared to other companies' products
Compact laser displacement sensor CD22 series, displacement sensor amplifier unit CDA series
・ Compact laser displacement sensor
CD22 series (RS-485 communication type)
・ Displacement sensor amplifier unit CDA series
・ CC-Link compatible communication unit UC1-CL11
・ Displacement sensor amplifier unit CDA series
・ CC-Link compatible communication unit UC1-CL11
[Compact laser displacement sensor CD22 series]
- 18 × 31 × 44mm (W × D × H) class smallest body
- High accuracy with repeatability of 1μm or more
- Ideal for incorporation into equipment and mounting on moving parts
[Displacement sensor amplifier unit CDA series]
- Easy thickness measurement and step measurement using external amplifier unit CDA
- Up to two CD22 series can be connected
[CC-Link compatible communication unit UC1-CL11]
- Connectable to displacement sensor amplifier via CC-Link compatible communication unit
- Easy monitoring of measured values and remote monitoring of sensors
| URL | https://www.optex-fa.jp/ |
| phone | Customer Support Center (Technical Consultation Desk) Toll Free 0800-170-1003 |
| Reception | Weekdays 9: 00-17: 30 |
List of compatible models
●: Supported ―: Not supported
| Company name | Series / model name | Connection method | |||||
|---|---|---|---|---|---|---|---|
| AnyWire ASLINK | CC-Link | CC-Link IE Field | CC-Link IE Field Basic | Ethernet * 2 | Bus connection | ||
| Mitsubishi Electric Corporation | MELSENSOR laser displacement sensor MH11 | ― | ― | ― | ● | ● | ― |
| Panasonic Device SUNX Co., Ltd. | Ultra-high-speed, high-precision laser displacement sensor HL-C2 | ― | ― | ― | ― | ● | ― |
| Optex FA Co., Ltd. | Laser displacement sensor control unit UQ1 series * Compatible with high-performance multi-laser displacement sensor CD5 series, C-MOS laser displacement sensor CD33 series |
― | ― | ― | ― | ― | ● * 3 |
| Communication unit for CC-Link UC1-CL11 * Compatible with displacement sensor amplifier unit CDA series and compact laser displacement sensor CD22 series |
― | ● | ― | ― | ― | ― | |
* 2. Only compatible with CPU with built-in Ethernet port. (Ethernet unit Ethernet port connection is not supported.)
* 3. MELSEC-Q series is supported.
* 3. MELSEC-Q series is supported.
- For the supported versions of each product, refer to the iQ Sensor Solution Reference Manual SH-081132-V.
- For detailed specifications of each product, refer to the partner product manual.
