iQ Sensor Solution (iQSS)
Laser sensor
It enables long-distance, pinpoint work detection, which is difficult with LED light sources, and enables highly accurate detection such as positioning.

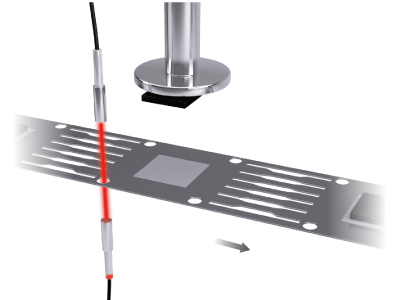

Positioning of small perforated board
Laser light with strong directivity passes through holes in the substrate. Only the substrate part can be shielded from light in a pinpoint position, enabling positioning.
Anywire Corporation
ASLINKSENSOR
/ Laser spot transmission type BS-L0117-PC-SET
/ Laser spot regression type BS-L0217-1K
/ Laser spot transmission type BS-L0117-PC-SET
/ Laser spot regression type BS-L0217-1K
- Lineup of amplifier integrated laser spot transmission type and regression reflection type
- Direct connection to AnyWireASLINK transmission line without remote I / O
- Sensing level monitoring is possible
- Sensor sensitivity settings can be written and read from the host
- Easy installation and maintenance work with less wiring
URL | http://www.anywire.jp |
phone | Technical support dial 075-952-8077 |
Reception | Weekdays 9: 00-17: 00 |
Panasonic Device SUNX Co., Ltd.
Communication unit for CC-Link SC-GU3-01
Digital laser sensor LS-500, LS-400
Digital laser sensor LS-500, LS-400
- Various sensor amplifiers can be connected via CC-Link compatible communication unit SC-GU3-01 (fiber, laser, pressure sensor)
- The small laser head allows the sensor to be installed in a narrow space, which was difficult with existing laser sensors (industry's smallest: as of December 2014)
- Lineup of laser class 1 (JIS / IEC / FDA) compliance for all sensor heads
URL | http://panasonic.net/id/pidsx/ |
phone | Technical consultation telephone service Toll free number 0120-394-205 |
Reception | Weekdays 9: 00-17: 00 (excluding 12: 00-13: 00) |
List of compatible models
●: Supported ―: Not supported
Company name | Series / model name | Connection method | |||||
---|---|---|---|---|---|---|---|
AnyWire ASLINK | CC-Link | CC-Link IE Field | CC-Link IE Field Basic | Ethernet | Bus connection | ||
Anywire Corporation | ASLINKSENSOR Laser spot transmission type BS-L0117-PC-SET | ● | ― | ― | ― | ― | ― |
ASLINKSENSOR Laser spot regression reflection type BS-L0217-1K | ● | ― | ― | ― | ― | ― | |
Panasonic Device SUNX Co., Ltd. | CC-Link compatible communication unit SC-GU3-01 * 1 * Compatible with digital laser sensors LS-500 and LS-400 |
― | ● | ― | ― | ― | ― |
* 1: Use the connector unit (SC-71) and end unit (SC-GU3-EU) separately, and use the dedicated software SC-PC1 separately.
- For the supported versions of each product, refer to the iQ Sensor Solution Reference Manual SH-081132-V.
- For detailed specifications of each product, refer to the partner product manual.
