iQ Sensor Solution (iQSS)
Image processing device
It can detect the size, shape, color and position of the work, and perform advanced appearance inspection, positioning, and character recognition.

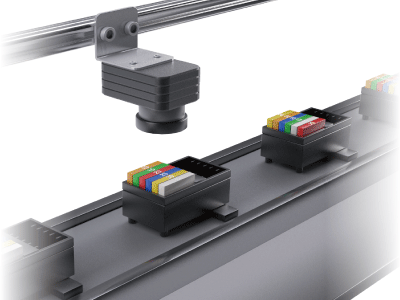

Fuse holder assembly inspection
Determine the color and character of the fuse and check that the fuse is correctly installed in the specified position on the holder.
Mitsubishi Electric Corporation
MELSENSOR Vision Sensor
Vision sensor VS20
Vision sensor VS70
Vision sensor VS80
- All-in-one image processing system integrating image processing and processor
- High-precision image processing inspection realized by abundant image tools such as high-performance hardware, high-resolution image capture and positioning, visual inspection, measurement, barcode and 2D code reading, character recognition, etc.
- Lighting and lens configurations can be freely changed according to application requirements (VS70, VS20)
- Power over Ethernet (PoE) reduces power wiring by supplying power via Ethernet cable (VS80)
- Operation check and job creation possible even without a vision sensor connected
- Because it can be connected to the sequencer without a program, even an inexperienced image processing person can easily set up.
- Equipped with CC-Link IE Field Network Basic interface to easily connect to Mitsubishi Electric PLC and enhance eF @ ctory information linkage
- Acquisition of measured values / judgment results and confirmation / change of vision sensor settings can be performed via a network
| URL | To product information of FA sensor MELSENSOR  |
| phone | Telephone technical consultation desk: 052-799-9495 |
| Reception | Weekdays 9: 00-19: 00 |
Optex FA Co., Ltd.
Ethernet-compatible LED lighting controller OPPD-30 series
OPPD-30 series
- A new generation LED lighting controller for image processing that realizes automatic brightness management and predictive maintenance of lighting by IoT
- Works in conjunction with OPTEX FA's proprietary technology "FALUX sensing" equipped with LED lighting. Realizes lighting brightness monitoring and dimming value feedback control
- External dimming & lighting control by Ethernet communication is possible. Easy connection "just connect LAN cable"
- Easy setting with dedicated PC software. Dimming, lighting control, frequency, etc. can be set
- Super compact size of W48 × H72 × D72mm. Approximately 38% of the volume of the conventional machine
- iQSS makes it easy to write dimming / lighting control settings, backup / restore settings, and monitor lighting brightness, temperature, and error information
High-performance print inspection system HVS-OCR series
HVS-OCR series
- Printing inspection system that inspects printing defects such as expiration date, expiration date and lot number. Stable inspection realized by excellent character extraction function
- Supports traceability by storing up to 8 million images
- Various barcode reading functions
- The device monitor function allows you to check the value fluctuation in real time when an error occurs or when changing the product type
- Parameter setting change, backup, and product type switching are easily possible with the programmable controller
| URL | https://www.optex-fa.jp/ |
| phone | Customer Support Center (Technical Consultation Desk) Toll Free 0800-170-1003 |
| Reception | Weekdays 9: 00-17: 30 |
List of compatible models
●: Supported ―: Not supported
| Company name | Series / model name | Connection method | |||||
|---|---|---|---|---|---|---|---|
| AnyWire ASLINK | CC-Link | CC-Link IE Field | CC-Link IE Field Basic | Ethernet * 1 | Bus connection | ||
| Mitsubishi Electric Corporation | MELSENSOR Vision Sensor VS80, VS70, VS20 | ― | ― | ― | ● | ● | ― |
| Optex FA Co., Ltd. | LED Lighting Controller for Ethernet OPPD-30 Series FA Co., Ltd. LED Lighting Controller for Ethernet OPPD-30 Series * Supports LED Lighting for Image Processing (with Sensing Function) |
― | ― | ― | ― | ● | ― |
| High performance printing inspection system HVS-OCR series | ― | ― | ― | ― | ● | ― | |
* 1: Only compatible with CPU with built-in Ethernet port. (The Ethernet port connection of the Ethernet unit is not supported.)
- For the supported versions of each product, refer to the iQ Sensor Solution Reference Manual SH-081132-V.
- For detailed specifications of each product, refer to the partner product manual.
