iQ Sensor Solution (iQSS)
solenoid valve
Driving of air cylinder, hand, etc. is possible. Because of the manifold type, large actuators can be driven in a small space.
Clamping operation of body welding

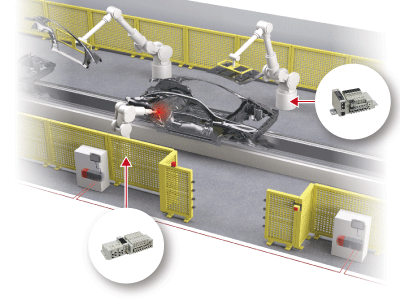

It is possible to drive clamping and unclamping of air cylinder of welding jig using welding robot in automobile process.
CKD Corporation
Reduced wiring manifold M4G / MN4G-T8 series, W4G-T7 series
Reduced wiring block manifold (IP20) 4G series
Reduced wiring block manifold (IP65) W4G series
[M4G / MN4G-T8 series]
- Applicable cylinder diameter: Up to $ 100. Three types of valve sizes are available. Can drive cylinders up to Ø100
- Continuous energization possible (low heat generation and power saving circuit option)
- Protection structure: IP20
- 32-point output / 16-point output, PNP / NPN selectable
- Maintenance information such as the number of operations and energizing time can be output
[W4G-T7 series]
- Applicable cylinder diameter: ~ Ø125. Two types of valve sizes are available. Can drive cylinders up to Ø125
- 32 outputs / 16 outputs / 16 inputs / 16 outputs, PNP / NPN selectable
- Protective structure: IP65
- Improved maintainability. Easy valve replacement with plug-in system
- Maintenance information such as the number of operations and energizing time can be output
| URL | https://www.ckd.co.jp |
| phone | Product Inquiries (Sales Promotion Department): 0568-74-1304 |
| Reception | Weekdays 9: 00-17: 00 (excluding 12: 00-13: 00) |
List of compatible models
●: Supported ―: Not supported
| Company name | Series / model name | Connection method | |||||
|---|---|---|---|---|---|---|---|
| AnyWire ASLINK | CC-Link | CC-Link IE Field | CC-Link IE Field Basic | Ethernet | Bus connection | ||
| CKD Corporation | Reduced wiring manifold M4G / MN4G-T8 series, W4G-T7 series | ― | ― | ― | ● | ― | ― |
* 4. Use the connector unit (SC-71) and end unit (SC-GU3-EU) separately, and use the dedicated software SC-PC1 separately.
- For the supported versions of each product, refer to the iQ Sensor Solution Reference Manual SH-081132-V.
- For detailed specifications of each product, refer to the partner product manual.
