Product Features
Recorder Module, Camera Recorder Module
Collecting of all device and label data
The MELSEC iQ-R Series modules (supporting system recording) collect all device and label data per controller scan prior to and after an error event (together with a time-stamp). The cause of the error can be identified quickly since individual settings for recording specific devices and labels are unnecessary. Safety device and label collection are supported.
Minimal impact on the scan time

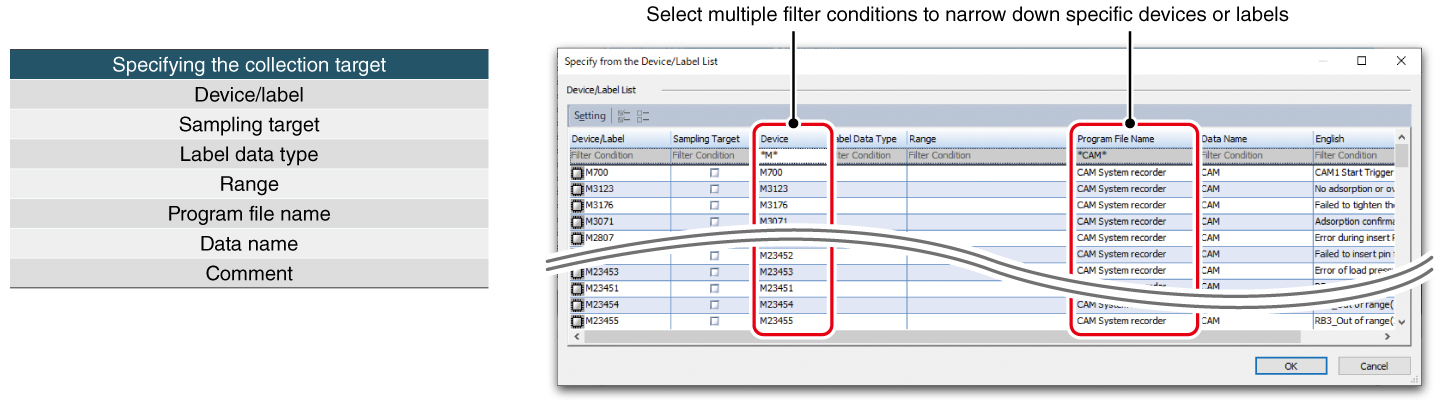

The system recorder module series are designed for logging of all device and label data before and after a trigger occurs. Influence on the CPU scan time is minimal as the execution load is separated. This can be ideal for ensuring determinism in a control system. Influence on the CPU scan time is further minimized by filtering of device and labels. Collecting targets can be quickly selected by narrowing down with multiple filter conditions.
Easy setting
Setting of the device trigger and the recording time before and after the event are only required irrespective of the device target recording range. Devices used within a program are recorded without any inconsistency.
Recorder module, camera recorder module specifications
Item | RD81RC96 | RD81RC96-CA | |
---|---|---|---|
Number of settings | Up to 4 | ||
Save destination | SD memory card, file server | ||
Recording method | File saving trigger only, recording startup trigger + file saving trigger | ||
File saving trigger | Device of the control CPU, elapsed time after completion of data collection (max.16 per recording setting) | ||
Recording startup trigger | Rise/fall accumulation period (1 per recording setting) | ||
Recording target | Device/label, event history | Device/label, event history, camera image | |
Sampling method | Each scan, time specification, trigger instruction, safety cycle time | ||
Number of connectable modules | One recorder module per control CPU | Four camera recorder modules per control CPU*2 | |
Applicable cameras*1 | Camera type | — | ONVIF® Profile S compliant network camera |
Number of cameras | — | Max. 4 per module*3 | |
Compatible CPU module | R04/08/16/32/120(EN)CPU, R08/16/32/120SFCPU*4 |
