Product Features
Optimum network scalable to fit any application size

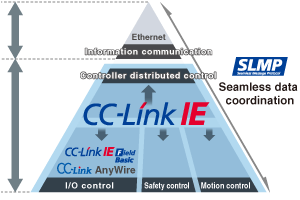

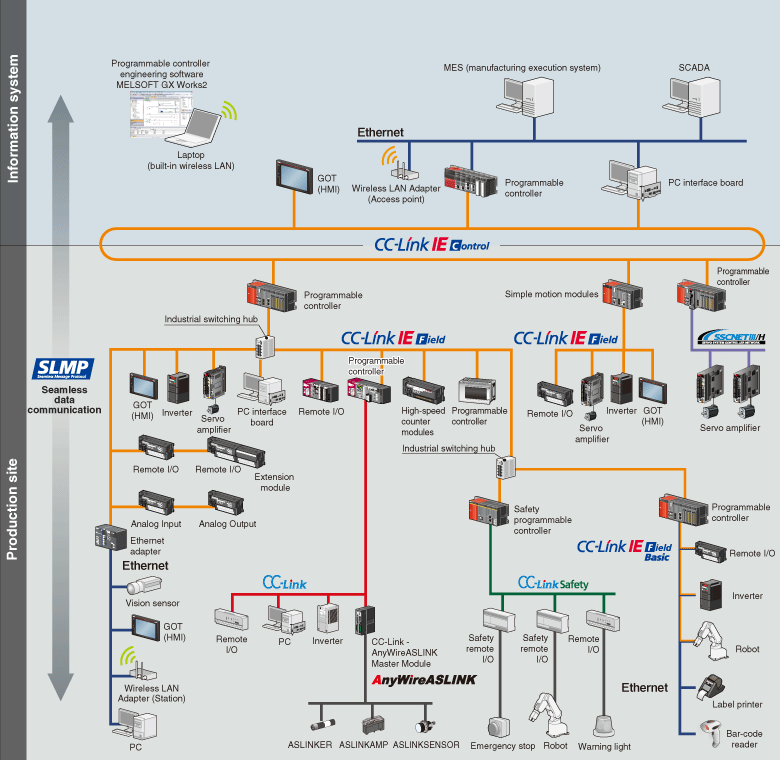

Enhanced information communication by networking is the essential requirement in the automation industry. The MELSEC-Q Series provides an open and seamless network environment integrating the following different level of automation networks: CC-Link IE; high-speed and large capacity Ethernet-based integrated open network that connects shop floor and IT system as the core of e-F@ctory, CC-Link; SEMI certified global standard network originating from Japan and Asia, CC-Link/LT; wire-saving sensor level network inherited CC-Link design concept, and AnyWire; sensor level distributed control network.
CC-Link IE Control is a high-reliability distributed control network designed to handle very large data communications (128K word) over a high-speed (1 Gbps) dual loop optical cable topology.
*: Compatible modules: QJ71GP21-SX, QJ71GP21S-SX
CC-Link IE Field is an all-round versatile gigabit Ethernet based network integrating controller, I/O control, safety control, and motion control in a flexible wiring topology supporting star, ring, and line configurations.
*: Compatible modules: QJ71GF11-T2, QS0J71GF11-T2 (safety control), QD77GF4, QD77GF8, QD77GF16 (motion control)
CC-Link IE Field Network Basic realizes easier network integration, as its cyclic communications stack is software-based, without requiring a dedicated ASIC helping to reduce implementation costs for device partners. CC-Link IE Field Network Basic, which is a part of CC-Link IE, realizes easier connection of Ethernet devices.
*: Compatible modules: QnUDVCPU, QnUDPVCPU
CC-Link is a high-speed and high-reliable deterministic I/O control network which realizes reduced wiring whilst offering multi-vendor compatible products. This open field network is a global standard originating from Japan and Asia.
*: Compatible module: QJ61BT11N
CC-Link Safety is a safety field network that prevents risks on the shop floor.
This realizes a highly-reliable and a high-speed communication with less wiring.
*: Compatible modules: QS0J61BT12
CC-Link/LT is a wire-saving sensor level network which is designed for use in panels between simple discrete devices. Its wiring system is based on reducing incorrect wiring and is based on CC-Link realizing high-speed and robust noise resistance features.
*: Compatible module: QJ61CL12
AnyWireASLINK makes it possible to centrally monitor (visibility) the state of all sensors from the programmable controller, by that improving productivity and reducing operation steps.
*: Modules supporting AnyWireASLINK: QJ51AW12AL, NZ2AW1C2AL
SSCNET Ⅲ/H is a dedicated high-speed, high-performance, and highly reliable servo system control network which offers flexible long distance wiring capabilities based on optical fiber cable topology.
*: Compatible modules: QD77MS2, QD77MS4, QD77MS16
This network supports the communication protocol standard BACnet® client function. This network is mainly used to monitor and control airconditioning, lighting and fire detection, etc. in building automation system applications.
*: Compatible modules: QnUDVCPU, QJ71E71-100 (client only)
Q-Series is now supporting the MODBUS® protocol network, realizing easy communication, with various MODBUS® slave devices compatible with Ethernet MODBUS®/TCP or RS-232/422/485 serial communication.
*: Module supporting MODBUS®/TCP : QJ71MT91 (master/slave functions), QnUDVCPU, QJ71E71-100 (master only)
*: Modules supporting MODBUS®: QJ71MB91 (master/slave functions), QJ71C24N (-R2/R4) (master only)
Network | Enterprise level network | Control level network | Device level network | Sensor level network | ||
---|---|---|---|---|---|---|
Information communication | Controller distributed control | I/O control | Safety control | Motion control | Control | |
Ethernet | ● | |||||
CC-Link IE Control | ● | |||||
CC-Link IE Field | ● | ● | ● | ● | ||
CC-Link IE Field Network Basic | ● | |||||
CC-Link | ● | |||||
CC-Link Safety | ● | |||||
CC-Link/LT | ● | |||||
AnyWireASLINK | ● | |||||
SSCNET Ⅲ/H | ● | |||||
BACnet® | ● | |||||
MODBUS®/TCP | ● | |||||
MODBUS® | ● |
