Product Features
Multiple CPUs ideal for distributed control and distributed function
The MELSEC-Q Series offers programmable controller, process, redundant, C language, motion, robot and CNC CPUs to cover various different control requirements.
With the multiple CPU configuration, a best-fit control system can be realized. In addition, high availability systems can be easily realized with the high-reliability redundant system range.
Detailed instrument control to match the process state
●Universal model process CPUQ04UDPVCPUQ06UDPVCPUQ13UDPVCPUQ26UDPVCPU

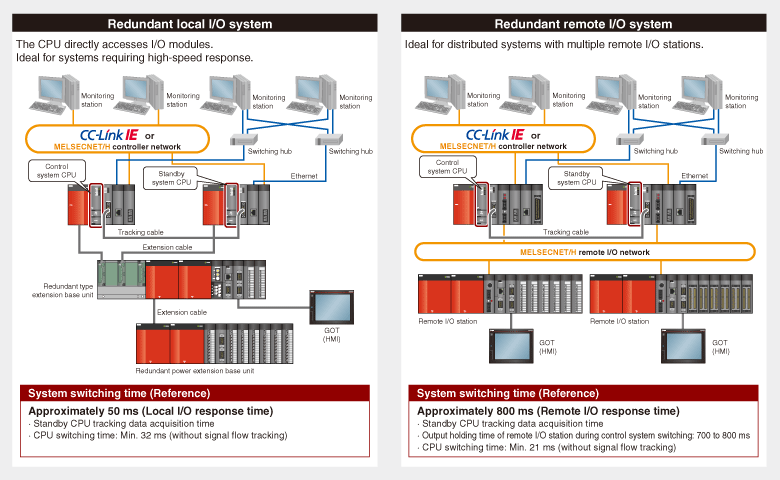

Redundancy
●Redundant CPUQ12PRHCPUQ25PRHCPU*1
*2: The number of PID loops may change if programs (other than loop control) are large.
Refer to the PX Developer Version 1 Programming Manual or Process Technical Guide for details.
Pre-installed systems with the C Controller
● C Controller CPUQ24DHCCPU-VQ24DHCCPU-VG*3Q24DHCCPU-LSQ26DHCCPU-LSQ12DCCPU-V
The C Controller is a generic open platform controller that can execute C language type programs, based on the MELSEC system architecture. It utilizes industrial performance such as long term parts supply, high availability, and advanced functionality. The high-end model Q24DHCCPU-V/-VG comes pre-installed with VxWorks®, and supports advanced information processing and control system I/O. The standard model Q12DCCPU-V is a space saving controller that realizes high-speed I/O control. The Q24DHCCPU-LS and Q26DHCCPU-LS are OS independent controllers. Linux® based control can be easily realized by installing third-party partner OS, supporting advanced information processing with a user interface environment close to conventional personal computers. Wide scope of applications are realized with the availability of these controllers, used together with MELSEC-Q Series I/O modules, third-party products, open source, and customized applications/programs. Providing freedom with a robust, easier and high-performance system.
*3: Set product (Q24DHCCPU-VG-B000/B002) with GENWARE® 3-VG by International Laboratory Corporation.

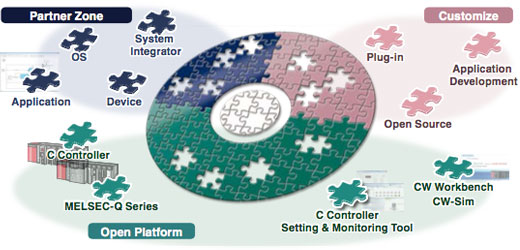

Ideal for a diverse range of systems, based on a generic platform architecture
Leveraging the C Controller to realizing customized systems, by utilization of third-party applications, installation of third-party partner OS, utilization of programs, and open source applications.
The C Controller overcomes the overheads associated with maintaining embedded computers (micro boards, etc.) and industrial computers realizing a cost effective solution.
The C Controller platform is a solution that realizes personal computer level functionality without the burden of high maintenance costs usually associated with personal computers. In addition, it includes a robust design that is ideal for industrial environments by being based on the high quality MELSEC control system.

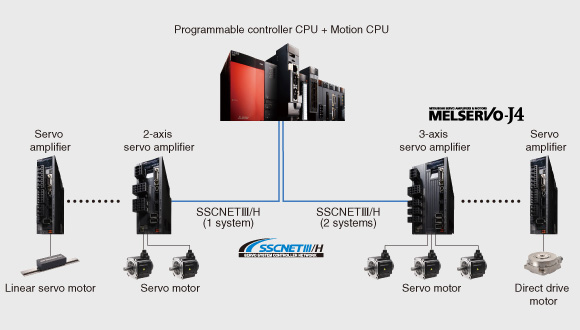

Connecting with servo amplifiers and servo motors
●Motion CPUQ173DSCPUQ172DSCPU
Each MELSEC-Q Series Motion controller is capable of high-speed control of up to 32 axes (96 axes when using three CPUs together). Each Motion CPU is the same size as a standard Q Series programmable controller. The new generation Motion controller is packed with advanced functions while saving space with its smaller size.
Automating production sites with robots
●Robot controllerCR800-Q

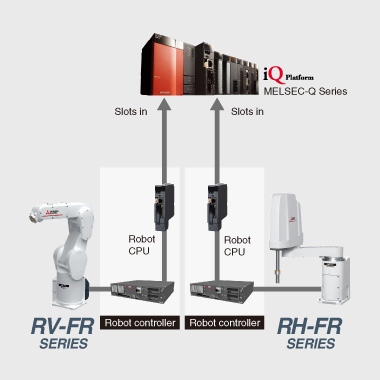

The iQ Platform compatible robot controller increases the speed of data communications between CPUs and dramatically reduces I/O processing times using a high-speed standard base between multiple CPUs.
Integrating the CNC with programmable controller
●CNCCPUQ173NCCPU

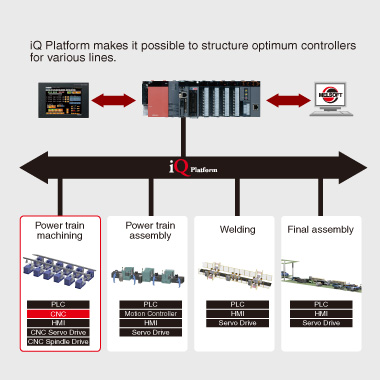

This CNC controller is part of the Mitsubishi FA integration solution “iQ Platform”.
The integration of the high-performance CNC and high-speed programmable controller helps reduce the total operation cycle time.
Supporting a wide range of interface and I/O modules flexible to many different applications.
