Social infrastructure
[1] Power generation unit

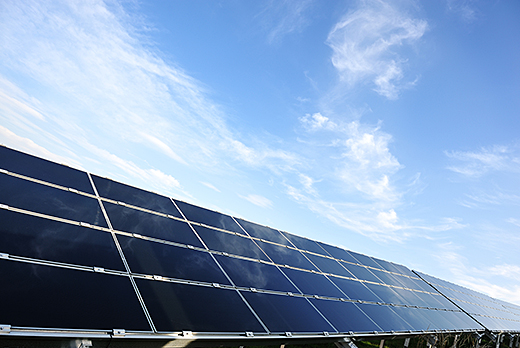

Mitsubishi solar cell module DIAMONDSOLAR is connected to a power conditioner via a junction box and current collector to generate power. Electric power is converted from DC to AC by the power conditioner.
DC high voltage compatible Mitsubishi no-fuse circuit breaker and Mitsubishi low pressure air circuit breaker cut off power, and Mitsubishi top runner transformer transforms power.
[2] Monitoring and control unit The
monitoring control unit EneWatch manufactured by BCC Co., Ltd. monitors and controls the power conditioner.
MELSEC-Q series C language controller and various units collect power generation, calculate, and monitor device status.
In cooperation with the string monitoring unit SOLAR LOOK, it detects performance degradation and failure of the solar cell module.
The communication controller RTU (Remote Terminal Unit) supports international communication standards (IEC61850 (planned), IEC60870, DNP3) for realizing a smart grid.
For integrated building management systems such as BEMS, air conditioning control, lighting control, and security management, we provide total solutions from monitoring devices to controllers and field devices. We propose the MELSEC-Q series duplex CPU for high reliability use, the MELSEC-L series / Q series for general use, and the MELSEC-F series for low cost use depending on the application.
[1] Visualization of
energy SCADA MC Works64 visualizes the energy consumption measured by various devices such as the energy measurement unit EcoMonitorLight, which can easily measure energy consumption, and finds waste of energy. In addition, various sensors of the wiring-saving network AnyWire visualize temperature, humidity, CO2 concentration, etc., and support air conditioning control.
[2] Energy saving A
high-performance and environmentally friendly inverter FREQROL and a three-phase motor that satisfies premium efficiency save energy on fan, pump and blower control. And MELSEC cooperates with SCADA MC Works64 to monitor and control each device.
[1] Highly reliable monitoring and control system with SCADA and redundant CPUs •Highly reliable system with
MELSEC-Q series redundant CPUs
• Distributed system with remote I / O
• Central monitoring with high-performance and high-performance SCADA MC Works64
• On-site monitoring with tablets
[2] Device / site monitoring and control system using GOT and high-speed process CPU
• Compact system without PC using GOT screen generation function
• Downsizing using CPU with built-in Ethernet port
• Mitsubishi Electric can select analog input type for each channel Analog signal converter manufactured by Engineering Co., Ltd.
