Solutions
Safety solutions
CNC (numerical control unit)

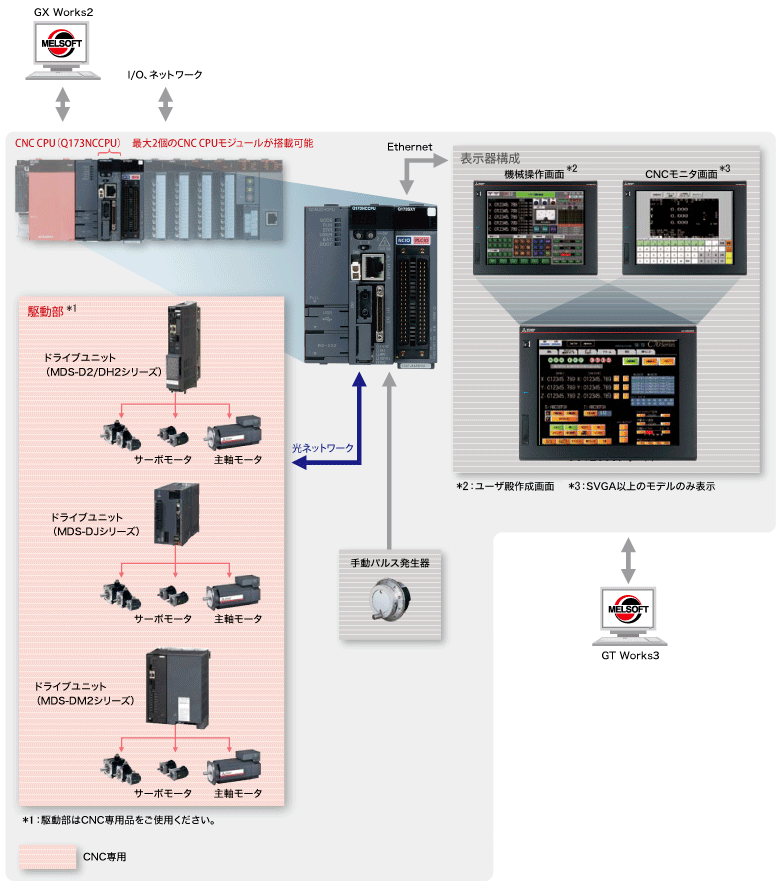

Basic configuration
The iQ Platform-compatible CNC CPU module Q173NCCPU is equipped with 16 axes and 7 systems of CNC functions in a small unit.
A safety system can be configured by adding the safety signal module Q173SXY.
Product Line
Product name | Model name | Remarks |
---|---|---|
CNC CPU unit | Q173NCCPU-S01 | MITSUBISHI CNC C70 |
Safety signal unit | Q173SXY | I / O redundant monitoring unit (up to 3 units) |
Safety signal unit | Q173SXY-2 | I / O redundant monitoring unit (high-speed type) (up to 3 units) |
