Safety solutions
Display GOT
Basic configuration

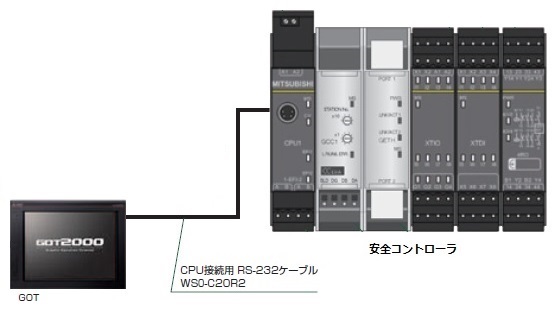

Connect with safety controller MELSEC-WS series
Connect to the safety controller CPU unit with the dedicated cable.

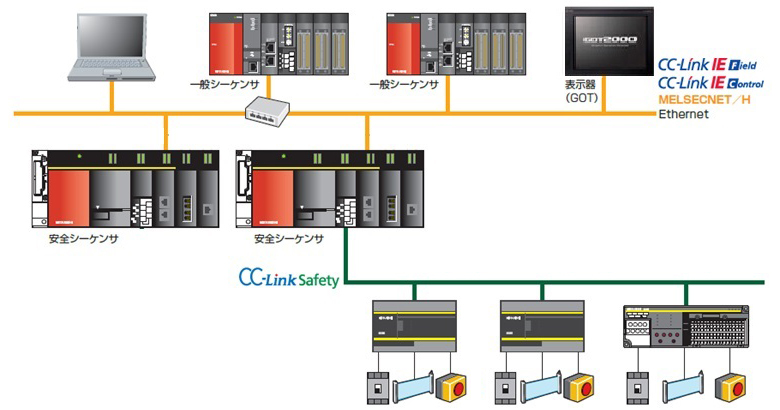

Connected to MELSEC-QS series safety programmable controller
Connect to the safety sequencer via a network.
Product Line
| Series name | Model name |
|---|---|
| GOT2000 series * 1 | GT2 □ |
| GOT1000 series | GT1 □ |
| Explosion-proof GOT1000 series | GT1 □ -EX- □ |
| GT SoftGOT2000 * 2 | SW1DND-GTWK3- □, GT27-SGTKEY-U |
| GT SoftGOT100 * 2 | SW1DND-GTWK3- □, GT15-SGTKEY-U |
* 1 : Sequence program monitor (circuit) is not supported.
* 2 : Sequence program monitor (circuit) is not supported.
* 2 : Sequence program monitor (circuit) is not supported.
Product configuration when connecting display GOT and safety sequencer
Target CPU unit: QS001CPU| Connection form | Safety sequencer side | Connection cable | GOT | ||
|---|---|---|---|---|---|
| unit | Communication form | Model name | Optional equipment | Body | |
| CC-Link IE controller network | QJ71GP21-SX QJ71GP21S-SX |
CC-Link IE controller network | Fiber optic cable | GT15-J71GP23-SX |
GT27 GT25 GT16 GT15 |
| CC-Link IE Field Network | QS0J71GF11-T2 | CC-Link IE Field Network | Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded / STP) straight cable | GT15-J71GF13-T2 | |
|
MELSECNET / H MELSECNET / 10 |
QJ71LP21 QJ71LP21-25 QJ71LP21S-25 |
MELSECNET / H MELSECNET / 10 (optical loop system) |
Fiber optic cable | GT15-J71LP23-25 | |
| QJ71BR11 |
MELSECNET / H MELSECNET / 10 (Coaxial bus system) |
coaxial cable | GT15-J71BR13 | ||
| Ethernet |
QJ71E71-100 QJ71E71-B5 QJ71E71-B2 QJ71E71 |
Ethernet | Twisted pair cable • Category 3, 4, 5 of 10BASE-T shielded twisted pair cable (STP) or unshielded twisted pair cable (UTP) • Category 5, 5e of 100BASE-TX shielded twisted pair cable (STP) | Built-in body |
GT27 GT25 GT2103-PMBD GT16 GT14 * 3 Explosion- proof GOT |
| GT15-J71E71-100 | GT15 | ||||
|
・ Connector conversion box
GT16H-CNB-42S ・ External connection cable GT16H-C30-42P GT16H-C60-42P GT16H-C100-42P |
GT16 Handy | ||||
|
・ Connector conversion box
GT16H-CNB-37S ・ External connection cable GT16H-C30-37PE GT16H-C60-37PE GT16H-C100-37PE |
|||||
|
・ Connector conversion box
GT16H-CNB-42S ・ External connection cable GT14H-C30-42P GT14H-C60-42P GT14H-C100-42P |
GT14 Handy | ||||
|
・ Connector conversion box
GT16H-CNB-37S ・ External connection cable GT11H-C30-37PE GT11H-C60-37PE GT11H-C100-37PE |
|||||
* 3 : GT1455-QTBDE and GT1450-QLBDE can be connected with GT14.
Product configuration for connecting display GOT and safety controller
Target CPU unit: WS0-CPU0, WS0-CPU1, WS0-CPU3| Connection form | Safety controller side | Connection cable | GOT | ||
|---|---|---|---|---|---|
| unit | Communication form | Model name | Optional equipment | Body | |
| CPU direct connection | WS0-CPU0 WS0-CPU1 WS0-CPU3 | RS-232 | WS0-C20R2 | Built-in body |
GT27 GT25 GT16 GT15 GT14 GT11 Serial GT105 □ GT104 □ |
| GT15-RS2-9P | GT27 GT25 GT16 GT15 Explosion- proof GOT | ||||
|
・ Connector conversion box
GT16H-CNB-42S ・ External connection cable GT16H-C30-42P |
GT16 Handy | ||||
|
・ Connector conversion box
GT11H-CNB-37S ・ External connection cable GT11H-C30-37P |
GT14 Handy GT11 Handy |
||||
| WS0-C20R2 + RS-232 self - made connection | Built-in body |
GT1020 GT1030 |
|||
