Solutions
Data collection / analysis solution
Mitsubishi Electric FA product lineup

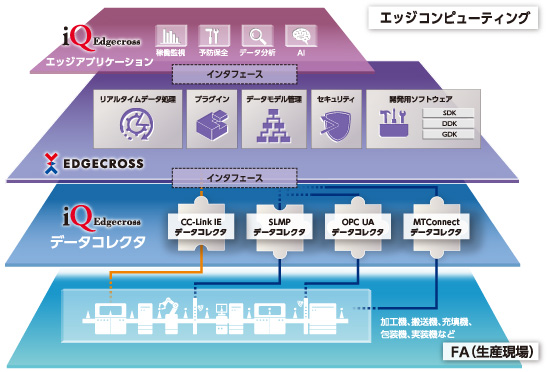

Data collector
It is software that collects data of various networks and devices to Edgecross. By using a data collector, it is possible to connect to various networks and collect data from existing equipment and various manufacturers' equipment without a program.

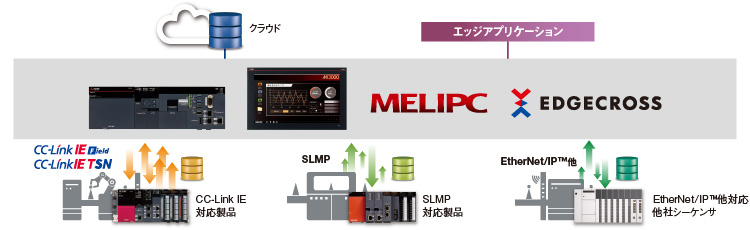

Data collection and utilization across networks
By using each data collector to collect the data of the production site in MELIPC preinstalled with Edgecross basic software, real-time data utilization and cooperation with IT system can be performed.
MELIPC-Compatible with our data collector
Item | MI5000 | MI3000 | MI2000 | MI1000 |
---|---|---|---|---|
CC-Link IE field network data collector (for MELIPC MI5122-VW only) |
● | ─ | ─ | ─ |
CC-Link IE Field Network data collector * 1 | ─ | ● | ● | ─ |
CC-Link IE Controller Network data collector * 1 | ─ | ● | ● | ─ |
CC-Link IE TSN data collector * 2 | ● | ● | ● | ● |
SLMP data collector | ● | ● | ● | ● |
OPC UA data collector | ● | ● | ● | ● |
MTConnect data collector | ● | ● | ● | ─ |
* 1. Our network interface board is required separately.
* 2. It will be released soon.
